Description
Brand - RBC
Item Number - KG300XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

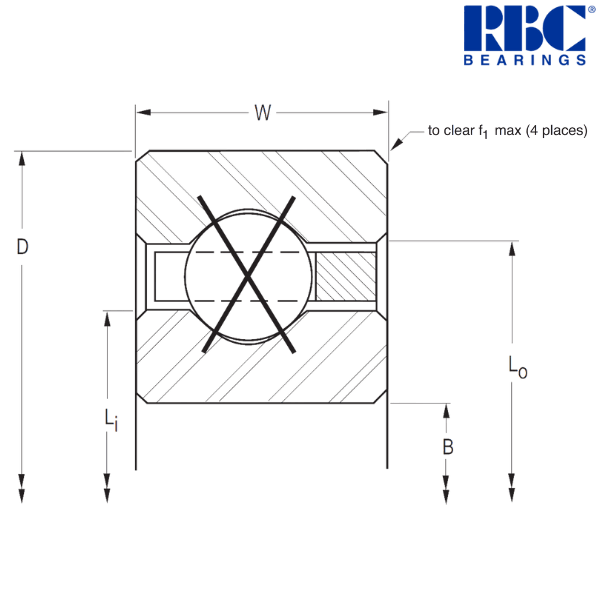

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 30
Outside Diameter (D) inch - 32
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 30.75
Land Diameter of Outer Ring (Lo) inch - 31.25
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 93
Approximate Weight (lbs) - 23.3
Radial Static Load (lbf) - 50890
Radial Dynamic Load (lbf) - 21200
Thrust Static Load (lbf) - 127200
Thrust Dynamic Load (lbf) - 37980
Moment Static Load (lbf) - 788800
Moment Dynamic Load (lbf) - 246541
Metric :
-----------------------------------------
Bore Diameter (B) mm - 762
Outside Diameter (D) mm - 812.8
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 781.05
Land Diameter of Outer Ring (Lo) mm - 793.75
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 10.569
Radial Static Load (N) - 226370
Radial Dynamic Load (N) - 94300
Thrust Static Load (N) - 565810
Thrust Dynamic Load (N) - 168940
Moment Static Load (Nm) - 89120
Moment Dynamic Load (Nm) - 27860
Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields

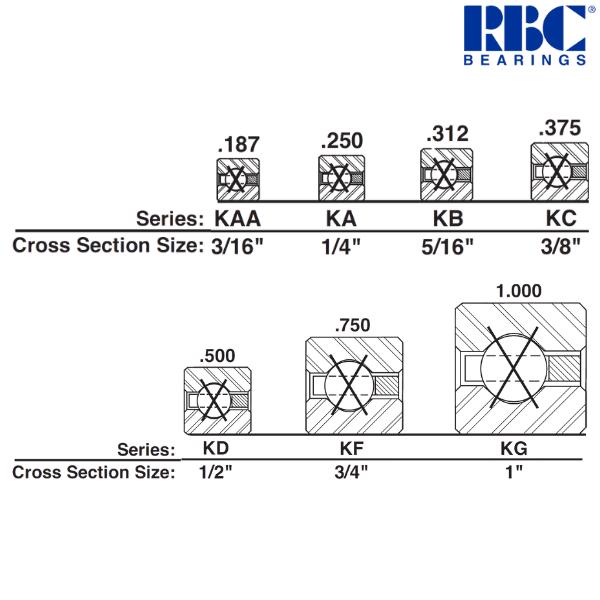

G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F
Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
*The alphanumeric identification system is used under license.
** Images are for representation purposes only
