KG300XP0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KG300XP0 KAYDON
Also Known As - KDN.KG300XP0

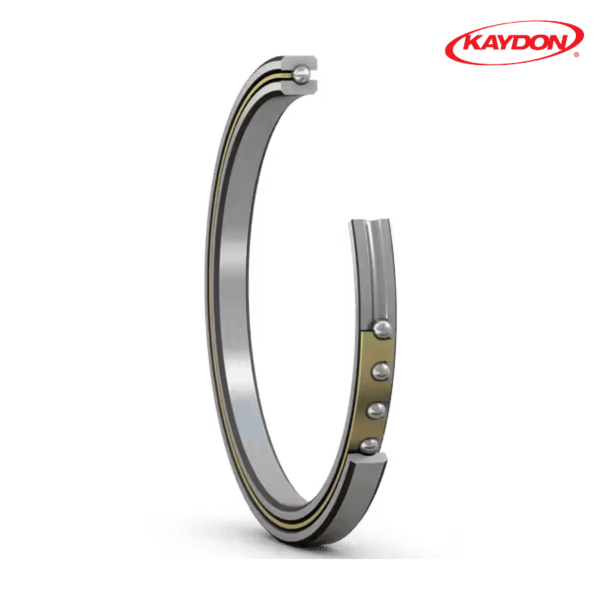

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

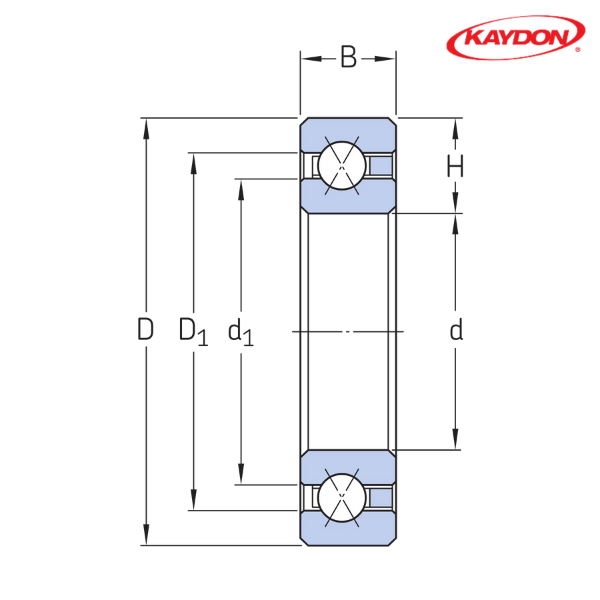

Inner Diameter (d) mm - 762
Outer Diameter (D) mm - 812.8
Radial Cross Section (H) mm - 25.4
Width (B) mm - 25.4
Dynamic Load Rating, Radial Direction (CK) kN - 94.3
Basic Static Load Rating, Radial Direction (C0) kN - 226
Basic Static Load Rating, Axial Direction (C0a) kN - 566
Basic Dynamic Load Rating, Moment (CM) kN·m - 27.855
Basic Static Load Rating, Moment (C0M) kN·m - 89.122
Weight (kg) - 10.6

** Images are for representation purposes only
