KG275XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KG275XP0*RBC

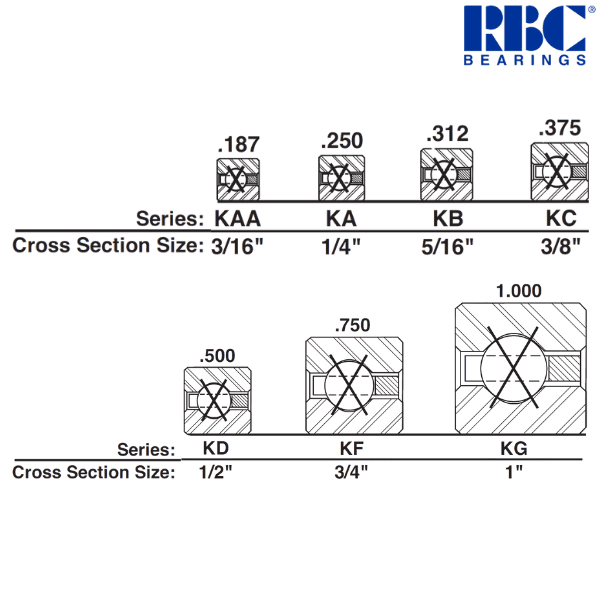

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

Imperial :
-----------------------------------------

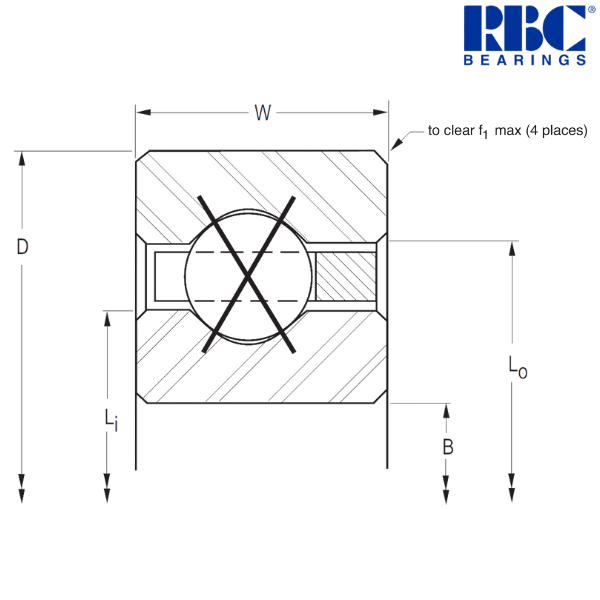

Bore Diameter (B) inch - 27.5
Outside Diameter (D) inch - 29.5
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 28.25
Land Diameter of Outer Ring (Lo) inch - 28.75
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 86
Approximate Weight (lbs) - 21.5
Radial Static Load (lbf) - 46785
Radial Dynamic Load (lbf) - 20280
Thrust Static Load (lbf) - 116950
Thrust Dynamic Load (lbf) - 35880
Moment Static Load (lbf) - 671850
Moment Dynamic Load (lbf) - 217690

Metric :
-----------------------------------------
Bore Diameter (B) mm - 698.5
Outside Diameter (D) mm - 749.3
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 717.55
Land Diameter of Outer Ring (Lo) mm - 730.25
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 9.761
Radial Static Load (N) - 208110
Radial Dynamic Load (N) - 90210
Thrust Static Load (N) - 520220
Thrust Dynamic Load (N) - 159602
Moment Static Load (Nm) - 75910
Moment Dynamic Load (Nm) - 24600

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
