KG250XP0 RBC

Brand - RBC
Item Number - KG250XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

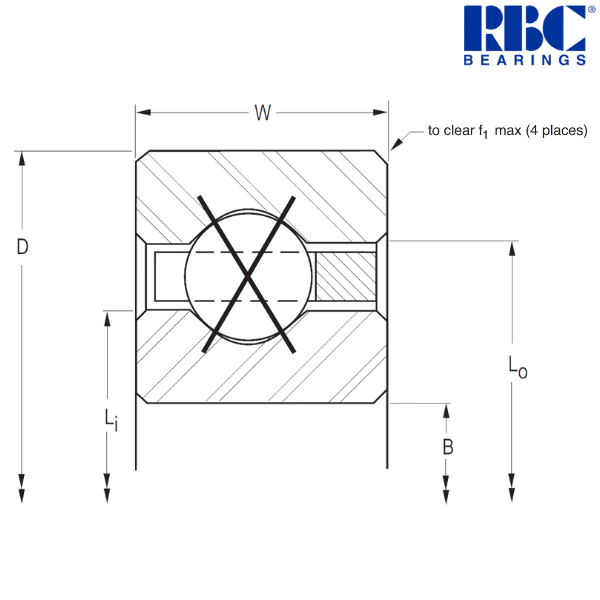

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 25
Outside Diameter (D) inch - 27
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 25.75
Land Diameter of Outer Ring (Lo) inch - 26.25
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 78
Approximate Weight (lbs) - 19.5
Radial Static Load (lbf) - 42680
Radial Dynamic Load (lbf) - 19360
Thrust Static Load (lbf) - 106700
Thrust Dynamic Load (lbf) - 33780
Moment Static Load (lbf) - 554900
Moment Dynamic Load (lbf) - 188838

Metric :
-----------------------------------------
Bore Diameter (B) mm - 635
Outside Diameter (D) mm - 685.8
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 654.05
Land Diameter of Outer Ring (Lo) mm - 666.75
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 8.845
Radial Static Load (N) - 189850
Radial Dynamic Load (N) - 86120
Thrust Static Load (N) - 474630
Thrust Dynamic Load (N) - 150260
Moment Static Load (Nm) - 62700
Moment Dynamic Load (Nm) - 21340

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields

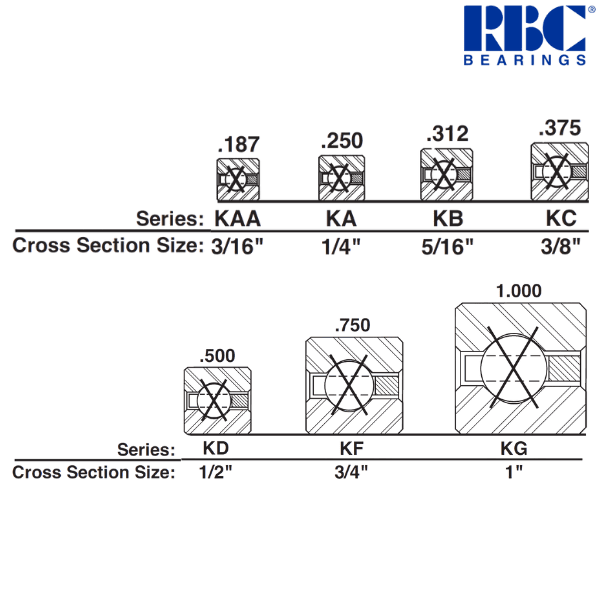

G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
