KG250XP0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KG250XP0 KAYDON
Also Known As - KDN.KG250XP0

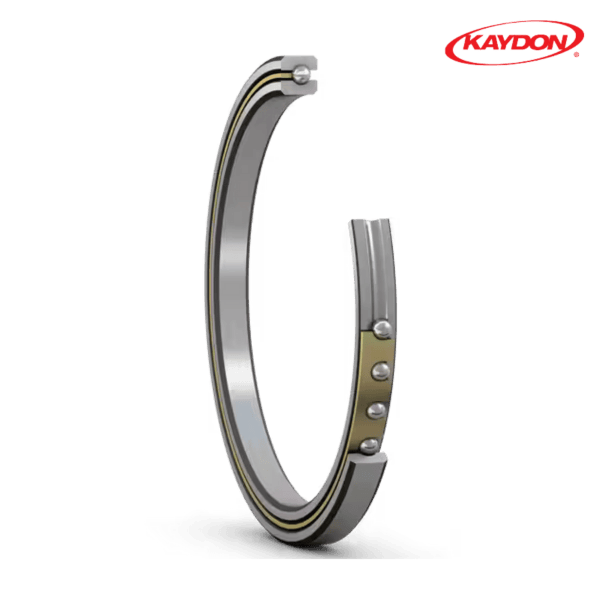

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

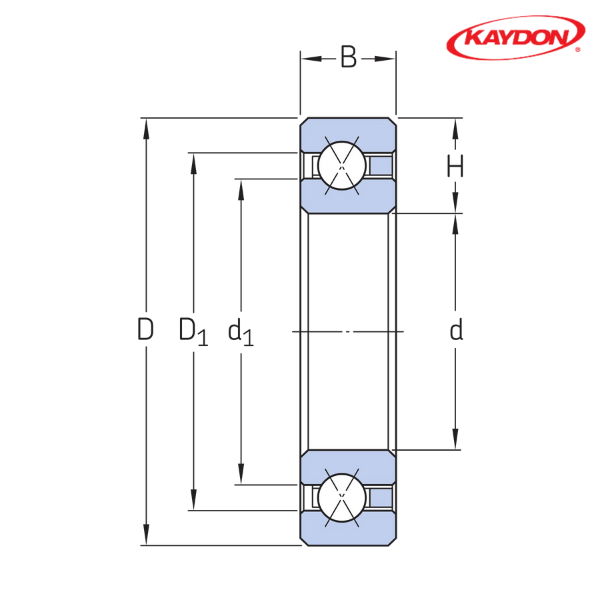

Inner Diameter (d) mm - 635
Outer Diameter (D) mm - 685.8
Radial Cross Section (H) mm - 25.4
Width (B) mm - 25.4
Dynamic Load Rating, Radial Direction (CK) kN - 86.1
Basic Static Load Rating, Radial Direction (C0) kN - 190
Basic Static Load Rating, Axial Direction (C0a) kN - 475
Basic Dynamic Load Rating, Moment (CM) kN·m - 21.336
Basic Static Load Rating, Moment (C0M) kN·m - 62.695
Weight (kg) - 8.85

** Images are for representation purposes only
