Description
Brand - RBC
Item Number - KG200XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

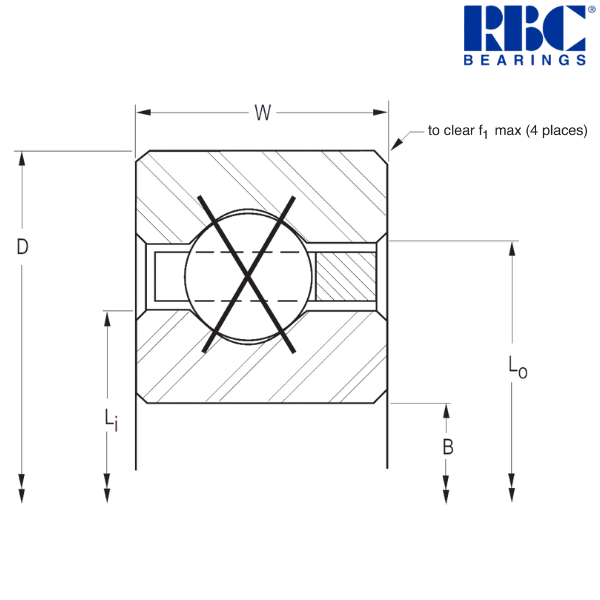

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 20
Outside Diameter (D) inch - 22
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 20.75
Land Diameter of Outer Ring (Lo) inch - 21.25
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.375
Ball Quantity - 63
Approximate Weight (lbs) - 15.8
Radial Static Load (lbf) - 34470
Radial Dynamic Load (lbf) - 17293
Thrust Static Load (lbf) - 86180
Thrust Dynamic Load (lbf) - 29300
Moment Static Load (lbf) - 362000
Moment Dynamic Load (lbf) - 136238
Metric :
-----------------------------------------
Bore Diameter (B) mm - 508
Outside Diameter (D) mm - 558.8
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 527.05
Land Diameter of Outer Ring (Lo) mm - 539.75
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 7.167
Radial Static Load (N) - 153330
Radial Dynamic Load (N) - 76920
Thrust Static Load (N) - 383350
Thrust Dynamic Load (N) - 130330
Moment Static Load (Nm) - 40900
Moment Dynamic Load (Nm) - 15390
Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F
Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
*The alphanumeric identification system is used under license.
** Images are for representation purposes only
