KG180XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KG180XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

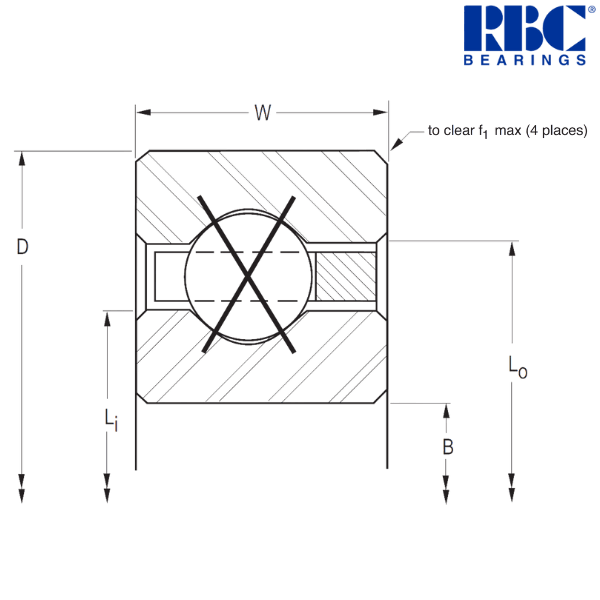

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 18
Outside Diameter (D) inch - 20
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 18.75
Land Diameter of Outer Ring (Lo) inch - 19.25
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.1875
Ball Quantity - 57
Approximate Weight (lbs) - 13.7
Radial Static Load (lbf) - 31190
Radial Dynamic Load (lbf) - 16386
Thrust Static Load (lbf) - 77980
Thrust Dynamic Load (lbf) - 27410
Moment Static Load (lbf) - 296300
Moment Dynamic Load (lbf) - 116793

Metric :
-----------------------------------------
Bore Diameter (B) mm - 457.2
Outside Diameter (D) mm - 508
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 476.25
Land Diameter of Outer Ring (Lo) mm - 488.95
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 6.214
Radial Static Load (N) - 138740
Radial Dynamic Load (N) - 72890
Thrust Static Load (N) - 346870
Thrust Dynamic Load (N) - 121930
Moment Static Load (Nm) - 33480
Moment Dynamic Load (Nm) - 13200

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
