KG100XP0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KG100XP0 KAYDON
Also Known As - KDN.KG100XP0

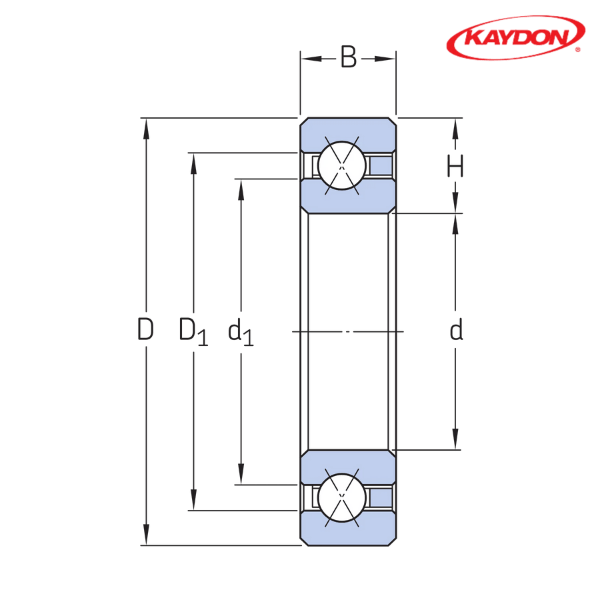

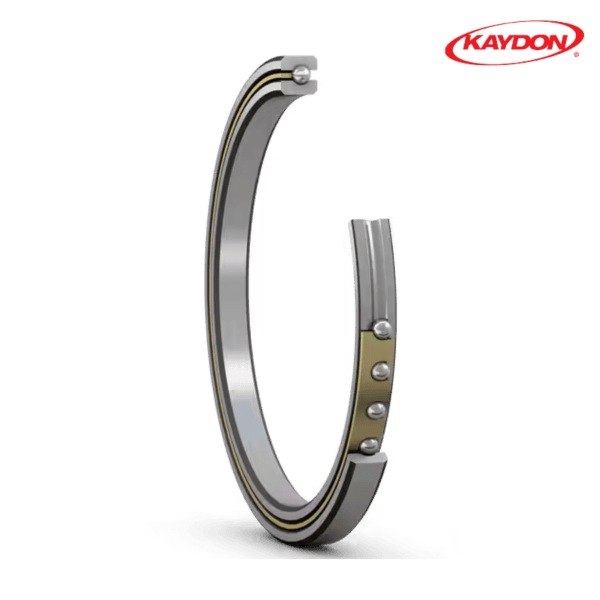

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing
Inner Diameter (d) mm - 254
Outer Diameter (D) mm - 304.8
Radial Cross Section (H) mm - 25.4
Width (B) mm - 25.4
Dynamic Load Rating, Radial Direction (CK) kN - 54
Basic Static Load Rating, Radial Direction (C0) kN - 80.3
Basic Static Load Rating, Axial Direction (C0a) kN - 201
Basic Dynamic Load Rating, Moment (CM) kN·m - 5.663
Basic Static Load Rating, Moment (C0M) kN·m - 11.222
Weight (kg) - 3.58

** Images are for representation purposes only
