Description
Brand - ZEN
Item Number - KG100CP0 ZEN

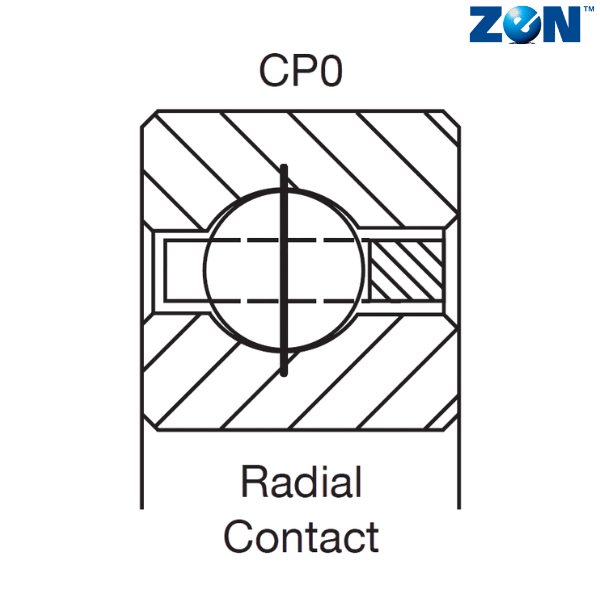

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 10
Inner Diameter (mm) - 254
Outer Diameter (inch) - 12
Outer Diameter (mm) - 304.8
Width (inch) - 1
Width (mm) - 25.4
Dynamic Load Rating (C) N - 52000
Static Load Rating (C) N - 71000
Limiting Speed (rpm) Grease - 1890
Approximate Weight (kg) - 3.58
Alternative Part Number in FAG - L10WA1000
Alternative Part Number in INA - CSCG100
Alternative Part Number in NSK - NBC25425
Alternative Part Number in SKF - FPCG1000
** Images are for representation purposes only
