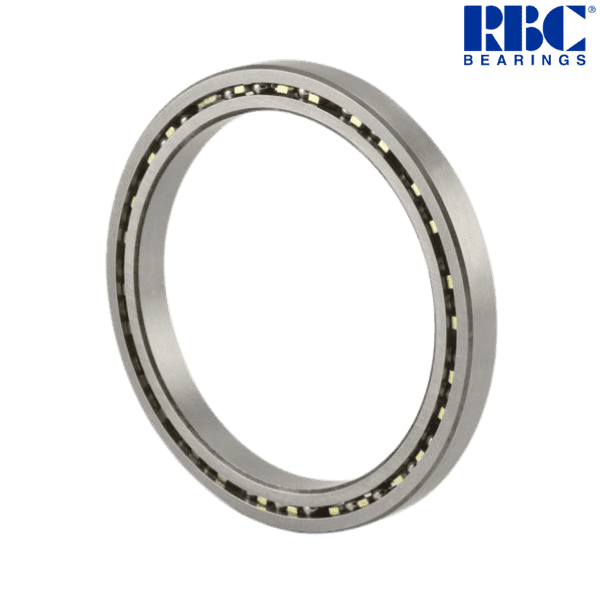

KF400XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KF400XP0*RBC

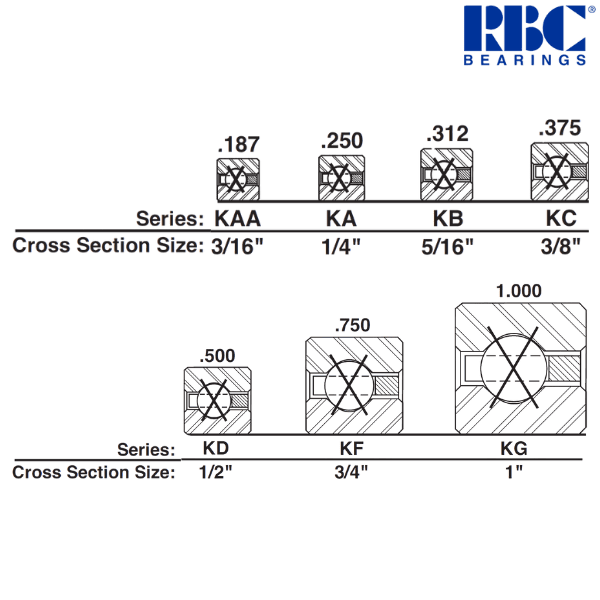

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

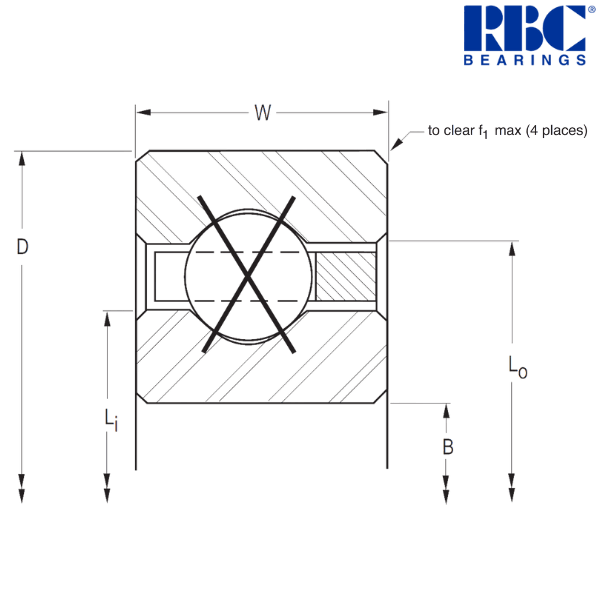

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 40
Outside Diameter (D) inch - 41.5
Width (W) inch - 0.75
Land Diameter of Inner Ring (Li) inch - 40.563
Land Diameter of Outer Ring (Lo) inch - 40.938
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.375
Ball Quantity - 163
Approximate Weight (lbs) - 17.2
Radial Static Load (lbf) - 45990
Radial Dynamic Load (lbf) - 15034
Thrust Static Load (lbf) - 115000
Thrust Dynamic Load (lbf) - 28620
Moment Static Load (lbf) - 937100
Moment Dynamic Load (lbf) - 229832

Metric :
-----------------------------------------
Bore Diameter (B) mm - 1016
Outside Diameter (D) mm - 1054.1
Width (W) mm - 19.05
Land Diameter of Inner Ring (Li) mm - 1030.3
Land Diameter of Outer Ring (Lo) mm - 1039.83
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 7.802
Radial Static Load (N) - 204570
Radial Dynamic Load (N) - 66870
Thrust Static Load (N) - 511550
Thrust Dynamic Load (N) - 127310
Moment Static Load (Nm) - 105880
Moment Dynamic Load (Nm) - 25970

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
F - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
