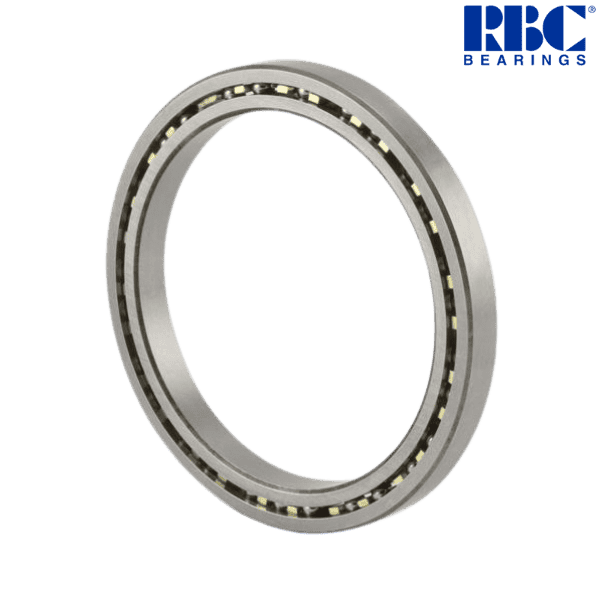

KF350XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KF350XP0*RBC

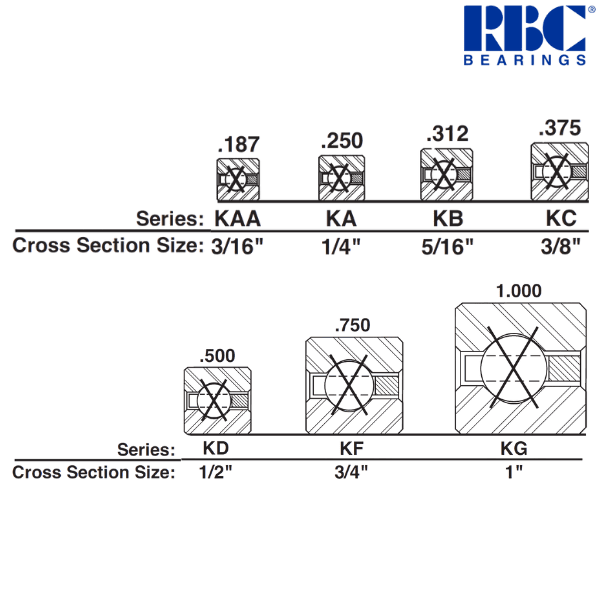

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

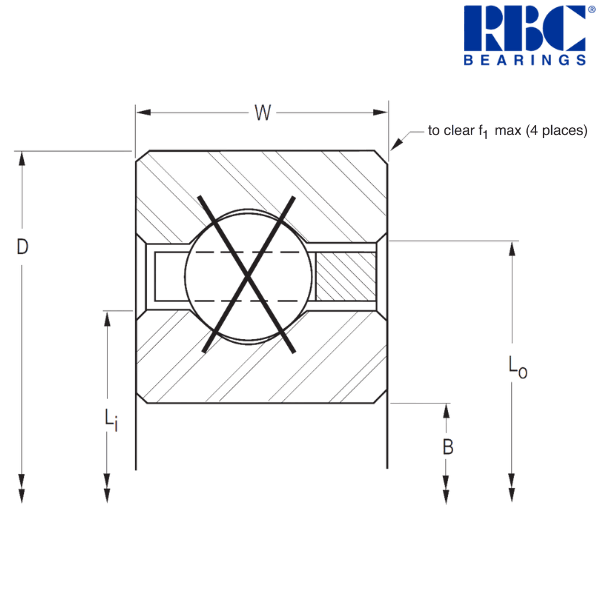

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 35
Outside Diameter (D) inch - 36.5
Width (W) inch - 0.75
Land Diameter of Inner Ring (Li) inch - 35.563
Land Diameter of Outer Ring (Lo) inch - 35.938
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.375
Ball Quantity - 143
Approximate Weight (lbs) - 15.1
Radial Static Load (lbf) - 40350
Radial Dynamic Load (lbf) - 14100
Thrust Static Load (lbf) - 100900
Thrust Dynamic Load (lbf) - 26220
Moment Static Load (lbf) - 721200
Moment Dynamic Load (lbf) - 189106

Metric :
-----------------------------------------
Bore Diameter (B) mm - 889
Outside Diameter (D) mm - 927.1
Width (W) mm - 19.05
Land Diameter of Inner Ring (Li) mm - 903.3
Land Diameter of Outer Ring (Lo) mm - 912.83
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 6.849
Radial Static Load (N) - 179490
Radial Dynamic Load (N) - 62720
Thrust Static Load (N) - 448830
Thrust Dynamic Load (N) - 116630
Moment Static Load (Nm) - 81480
Moment Dynamic Load (Nm) - 21370

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
F - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
