KF250XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KF250XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

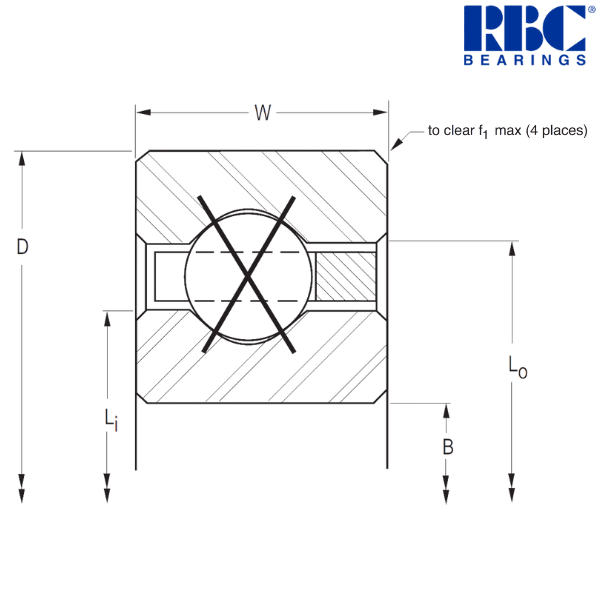

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 25
Outside Diameter (D) inch - 26.5
Width (W) inch - 0.75
Land Diameter of Inner Ring (Li) inch - 25.563
Land Diameter of Outer Ring (Lo) inch - 25.938
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.375
Ball Quantity - 103
Approximate Weight (lbs) - 10.9
Radial Static Load (lbf) - 29060
Radial Dynamic Load (lbf) - 11909
Thrust Static Load (lbf) - 72650
Thrust Dynamic Load (lbf) - 21070
Moment Static Load (lbf) - 374200
Moment Dynamic Load (lbf) - 115037

Metric :
-----------------------------------------
Bore Diameter (B) mm - 635
Outside Diameter (D) mm - 673.1
Width (W) mm - 19.05
Land Diameter of Inner Ring (Li) mm - 649.3
Land Diameter of Outer Ring (Lo) mm - 658.83
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 4.944
Radial Static Load (N) - 129270
Radial Dynamic Load (N) - 52970
Thrust Static Load (N) - 323160
Thrust Dynamic Load (N) - 93720
Moment Static Load (Nm) - 42280
Moment Dynamic Load (Nm) - 13000

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
F - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
