KF200XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KF200XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

Imperial :
-----------------------------------------

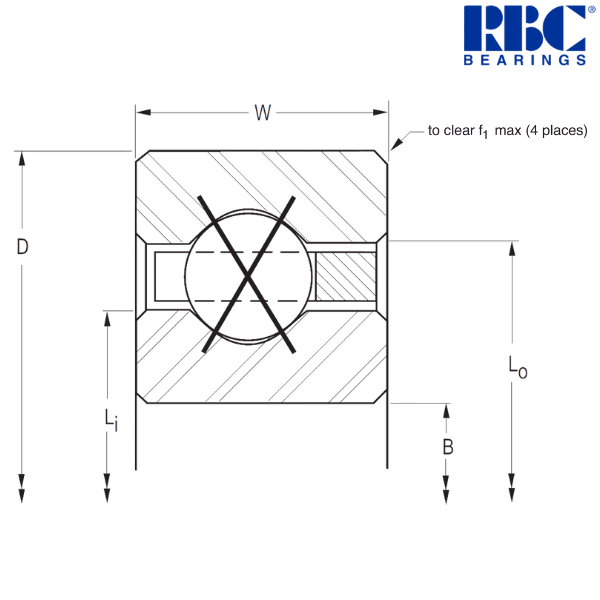

Bore Diameter (B) inch - 20
Outside Diameter (D) inch - 21.5
Width (W) inch - 0.75
Land Diameter of Inner Ring (Li) inch - 20.563
Land Diameter of Outer Ring (Lo) inch - 20.938
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 83
Approximate Weight (lbs) - 8.9
Radial Static Load (lbf) - 23420
Radial Dynamic Load (lbf) - 10602
Thrust Static Load (lbf) - 58550
Thrust Dynamic Load (lbf) - 18250
Moment Static Load (lbf) - 243000
Moment Dynamic Load (lbf) - 82528

Metric :
-----------------------------------------
Bore Diameter (B) mm - 508
Outside Diameter (D) mm - 546.1
Width (W) mm - 19.05
Land Diameter of Inner Ring (Li) mm - 522.3
Land Diameter of Outer Ring (Lo) mm - 531.83
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 4.037
Radial Static Load (N) - 104180
Radial Dynamic Load (N) - 47160
Thrust Static Load (N) - 260440
Thrust Dynamic Load (N) - 81180
Moment Static Load (Nm) - 27460
Moment Dynamic Load (Nm) - 9320

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields

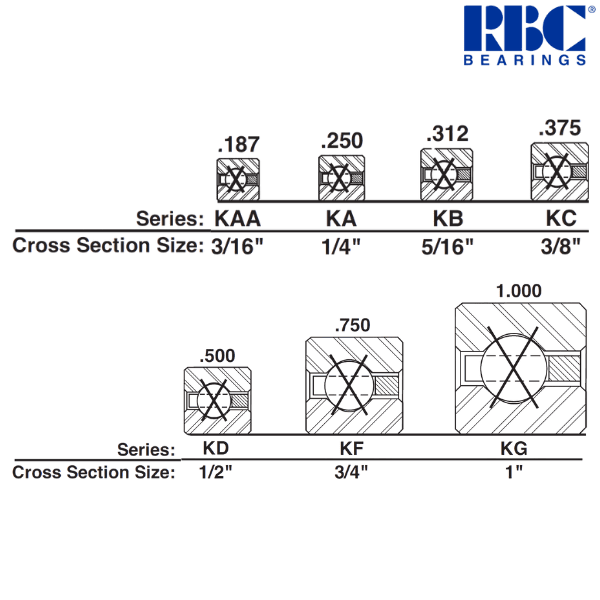

F - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
