KF180XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KF180XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

Imperial :
-----------------------------------------

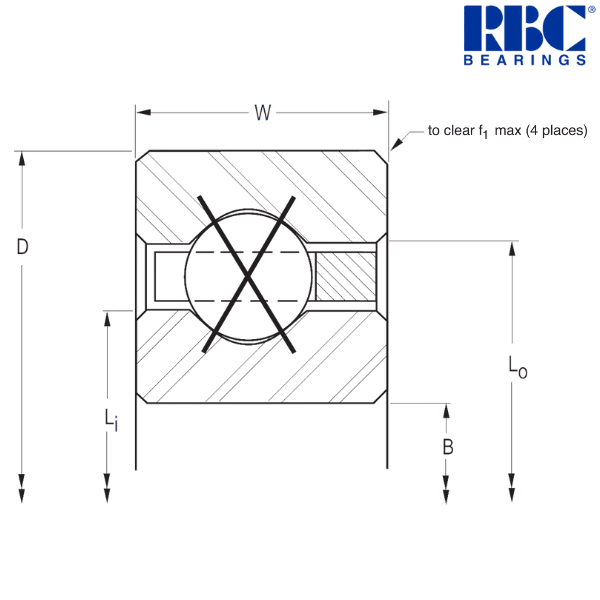

Bore Diameter (B) inch - 18
Outside Diameter (D) inch - 19.5
Width (W) inch - 0.75
Land Diameter of Inner Ring (Li) inch - 18.563
Land Diameter of Outer Ring (Lo) inch - 18.938
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 75
Approximate Weight (lbs) - 7.9
Radial Static Load (lbf) - 21160
Radial Dynamic Load (lbf) - 10028
Thrust Static Load (lbf) - 52900
Thrust Dynamic Load (lbf) - 17060
Moment Static Load (lbf) - 198400
Moment Dynamic Load (lbf) - 70537

Metric :
-----------------------------------------
Bore Diameter (B) mm - 457.2
Outside Diameter (D) mm - 495.3
Width (W) mm - 19.05
Land Diameter of Inner Ring (Li) mm - 471.5
Land Diameter of Outer Ring (Lo) mm - 481.03
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 3.583
Radial Static Load (N) - 94120
Radial Dynamic Load (N) - 44610
Thrust Static Load (N) - 235310
Thrust Dynamic Load (N) - 75890
Moment Static Load (Nm) - 22420
Moment Dynamic Load (Nm) - 7970

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
F - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
