Description
Brand - KAYDON
Item Number - KF100XP0 KAYDON
Also Known As - KDN.KF100XP0
Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

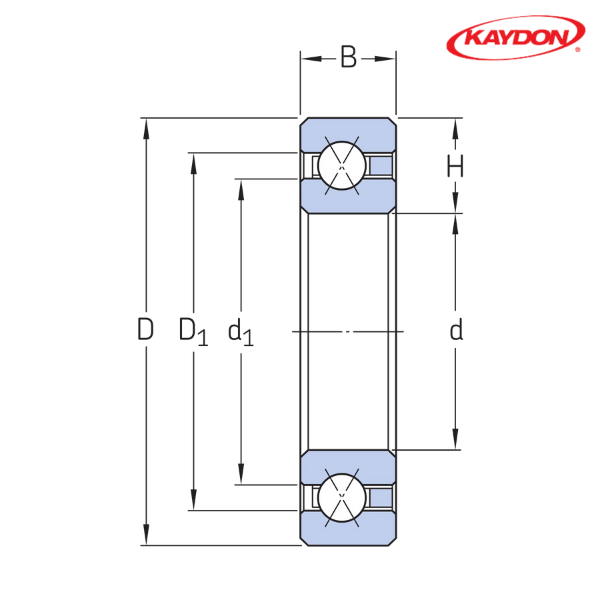

Inner Diameter (d) mm - 254
Outer Diameter (D) mm - 292.1
Radial Cross Section (H) mm - 19.05
Width (B) mm - 19.05
Dynamic Load Rating, Radial Direction (CK) kN - 32.7
Basic Static Load Rating, Radial Direction (C0) kN - 54
Basic Static Load Rating, Axial Direction (C0a) kN - 135
Basic Dynamic Load Rating, Moment (CM) kN·m - 3.345
Basic Static Load Rating, Moment (C0M) kN·m - 7.368
Weight (kg) - 1.95

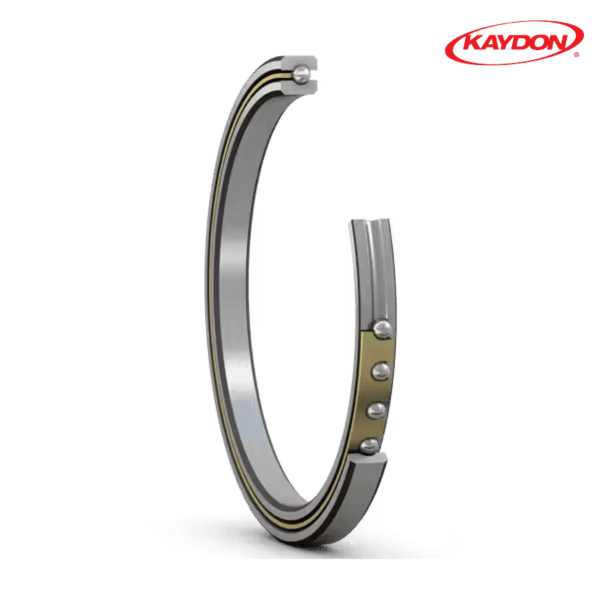

** Images are for representation purposes only
