Description
Brand - ZEN
Item Number - KF100CP0 ZEN

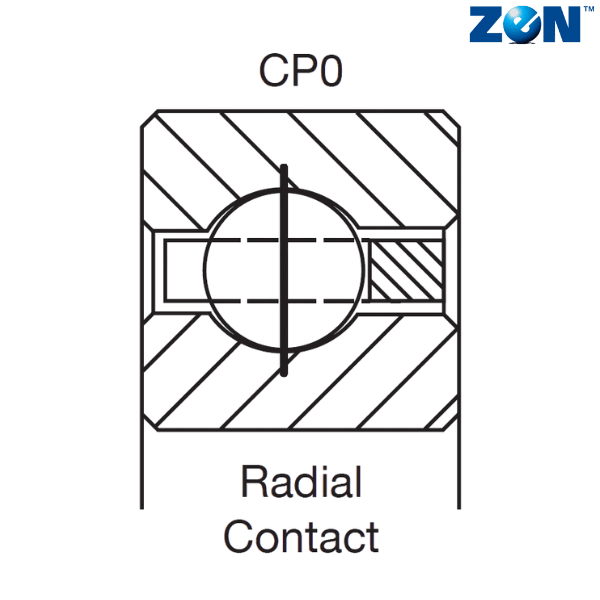

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 10
Inner Diameter (mm) - 254
Outer Diameter (inch) - 11.5
Outer Diameter (mm) - 292.1
Width (inch) - 0.75
Width (mm) - 19.05
Dynamic Load Rating (C) N - 32500
Static Load Rating (C) N - 48000
Limiting Speed (rpm) Grease - 1970
Approximate Weight (kg) - 1.95
Alternative Part Number in FAG - L10VA1000
Alternative Part Number in INA - CSCF100
Alternative Part Number in NSK - NBC25419
Alternative Part Number in SKF - FPCF1000
** Images are for representation purposes only
