KF090AR0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KF090AR0 KAYDON
Also Known As - KDN.KF090AR0

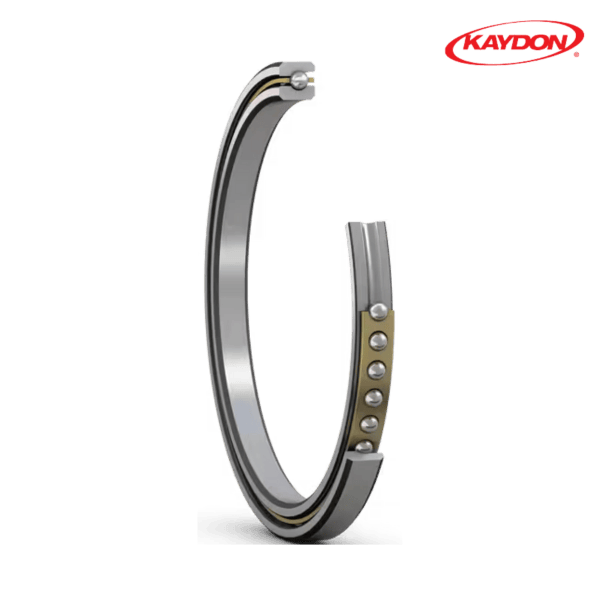

Category - Reali-Slim Thin Section Angular Contact Ball Bearing

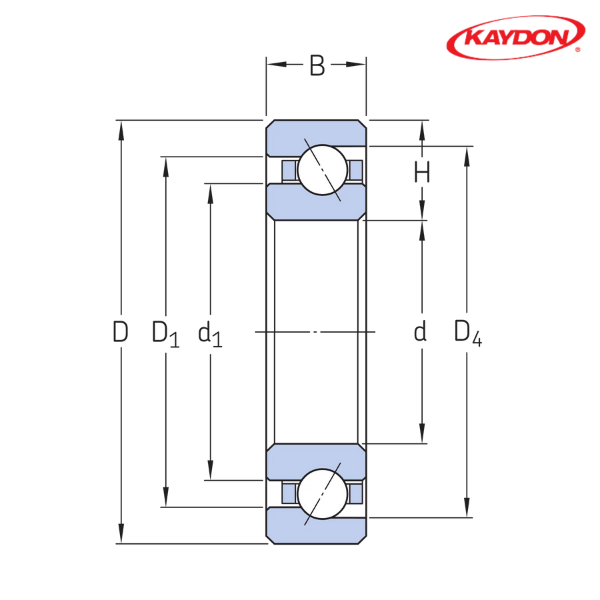

Inner Diameter (d) mm - 228.6
Outer Diameter (D) mm - 266.7
Radial Cross Section (H) mm - 19.05
Width (B) mm - 19.05
Dynamic Load Rating, Radial Direction (CK) kN - 24.9
Basic Static Load Rating, Radial Direction (C0) kN - 58.7
Basic Static Load Rating, Axial Direction (C0a) kN - 169
Weight (kg) - 1.79

** Images are for representation purposes only
