Description
Brand - ZEN
Item Number - KF055CP0 ZEN

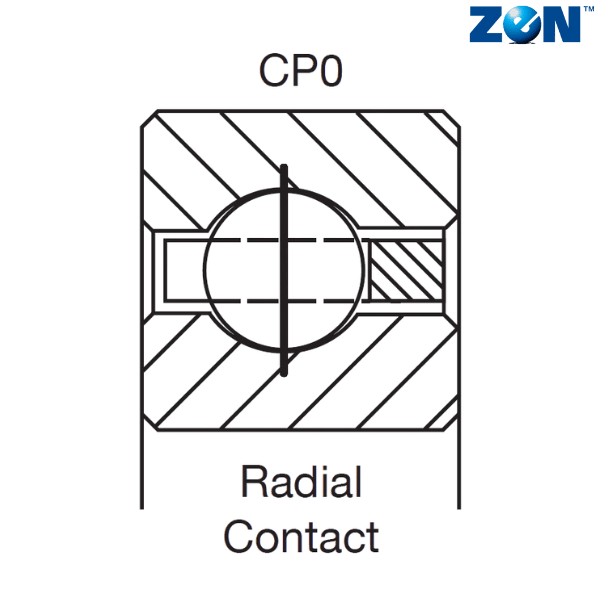

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 5.5
Inner Diameter (mm) - 139.7
Outer Diameter (inch) - 7
Outer Diameter (mm) - 177.8
Width (inch) - 0.75
Width (mm) - 19.05
Dynamic Load Rating (C) N - 26500
Static Load Rating (C) N - 27000
Limiting Speed (rpm) Grease - 3400
Approximate Weight (kg) - 1.13
Alternative Part Number in FAG - L10VA508
Alternative Part Number in INA - CSCF055
Alternative Part Number in NSK - NBC13919
Alternative Part Number in SKF - FPCF508
** Images are for representation purposes only
