KF050XP0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KF050XP0 KAYDON
Also Known As - KDN.KF050XP0

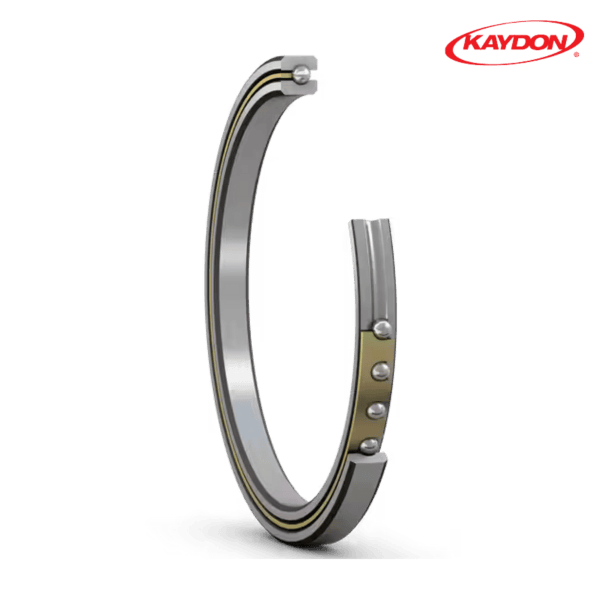

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

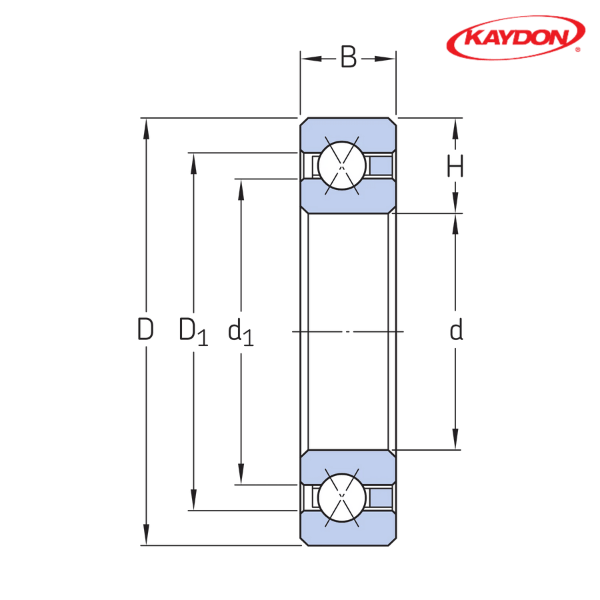

Inner Diameter (d) mm - 127
Outer Diameter (D) mm - 165.1
Radial Cross Section (H) mm - 19.05
Width (B) mm - 19.05
Dynamic Load Rating, Radial Direction (CK) kN - 23
Basic Static Load Rating, Radial Direction (C0) kN - 28.9
Basic Static Load Rating, Axial Direction (C0a) kN - 72.2
Basic Dynamic Load Rating, Moment (CM) kN·m - 1.261
Basic Static Load Rating, Moment (C0M) kN·m - 2.108
Weight (kg) - 1.04

** Images are for representation purposes only
