KF047AR0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KF047AR0 KAYDON
Also Known As - KDN.KF047AR0

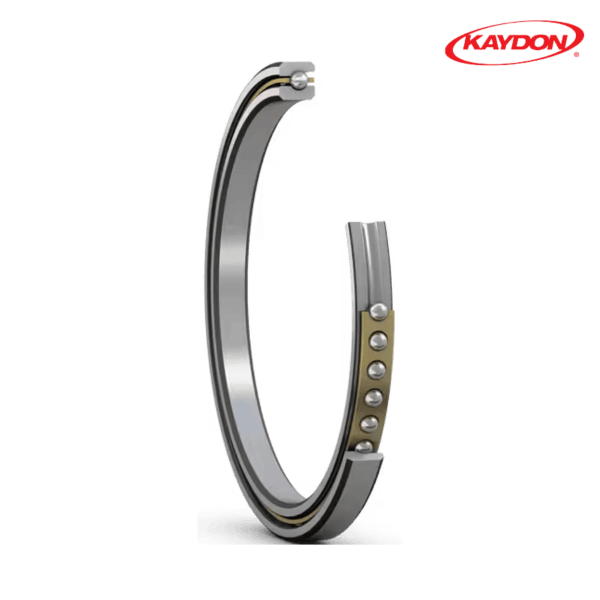

Category - Reali-Slim Thin Section Angular Contact Ball Bearing

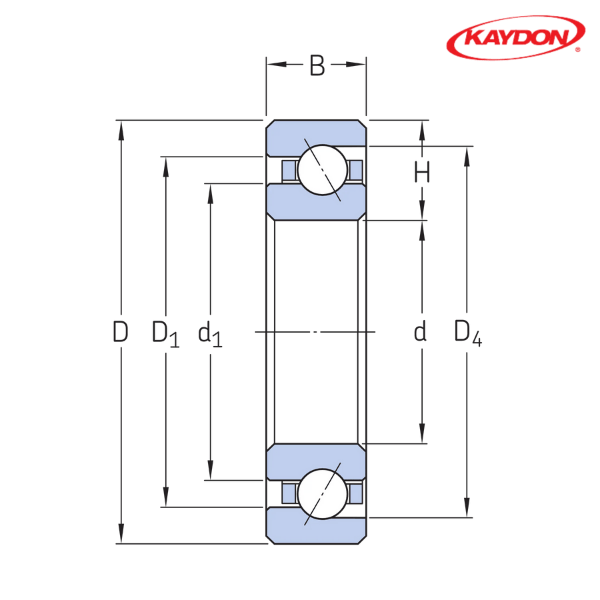

Inner Diameter (d) mm - 120.65
Outer Diameter (D) mm - 158.75
Radial Cross Section (H) mm - 19.05
Width (B) mm - 19.05
Dynamic Load Rating, Radial Direction (CK) kN - 17.9
Basic Static Load Rating, Radial Direction (C0) kN - 32.6
Basic Static Load Rating, Axial Direction (C0a) kN - 94.1
Weight (kg) - 1.03

** Images are for representation purposes only
