KD300XP0 RBC

Brand - RBC
Item Number - KD300XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

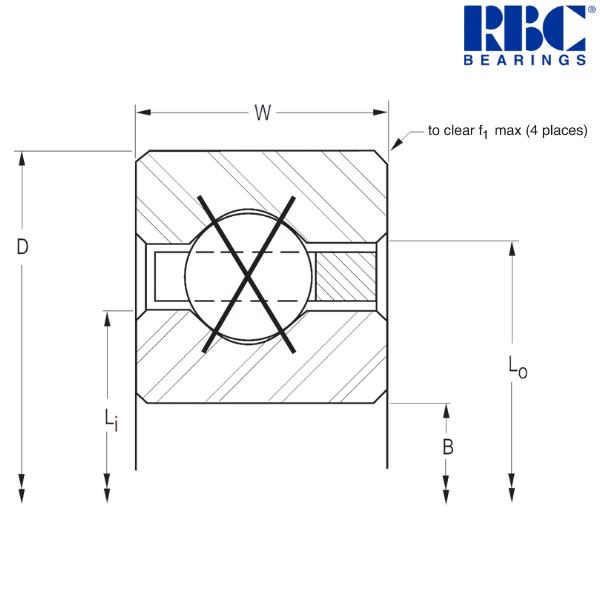

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 30
Outside Diameter (D) inch - 31
Width (W) inch - 0.5
Land Diameter of Inner Ring (Li) inch - 30.375
Land Diameter of Outer Ring (Lo) inch - 30.625
Housing Fillet (f1) inch - 0.06
Ball Diameter (inch) - 0.25
Ball Quantity - 183
Approximate Weight (lbs) - 5.73
Radial Static Load (lbf) - 20860
Radial Dynamic Load (lbf) - 6856
Thrust Static Load (lbf) - 52160
Thrust Dynamic Load (lbf) - 12600
Moment Static Load (lbf) - 318100
Moment Dynamic Load (lbf) - 78447

Metric :
-----------------------------------------
Bore Diameter (B) mm - 762
Outside Diameter (D) mm - 787.4
Width (W) mm - 12.7
Land Diameter of Inner Ring (Li) mm - 771.53
Land Diameter of Outer Ring (Lo) mm - 777.88
Housing Fillet (f1) mm - 1.52
Approximate Weight (kg) - 2.599
Radial Static Load (N) - 92790
Radial Dynamic Load (N) - 30500
Thrust Static Load (N) - 232020
Thrust Dynamic Load (N) - 56050
Moment Static Load (Nm) - 35940
Moment Dynamic Load (Nm) - 8860

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
D - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
