KD250XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KD250XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

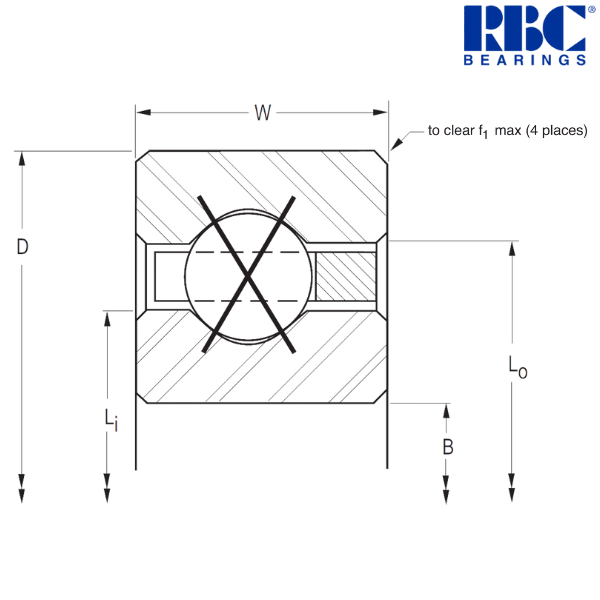

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 25
Outside Diameter (D) inch - 26
Width (W) inch - 0.5
Land Diameter of Inner Ring (Li) inch - 25.375
Land Diameter of Outer Ring (Lo) inch - 25.625
Housing Fillet (f1) inch - 0.06
Ball Diameter (inch) - 0.5
Ball Quantity - 153
Approximate Weight (lbs) - 4.79
Radial Static Load (lbf) - 17440
Radial Dynamic Load (lbf) - 6235
Thrust Static Load (lbf) - 43610
Thrust Dynamic Load (lbf) - 11180
Moment Static Load (lbf) - 222400
Moment Dynamic Load (lbf) - 59649

Metric :
-----------------------------------------
Bore Diameter (B) mm - 635
Outside Diameter (D) mm - 660.4
Width (W) mm - 12.7
Land Diameter of Inner Ring (Li) mm - 644.53
Land Diameter of Outer Ring (Lo) mm - 650.88
Housing Fillet (f1) mm - 1.52
Approximate Weight (kg) - 2.173
Radial Static Load (N) - 77580
Radial Dynamic Load (N) - 27730
Thrust Static Load (N) - 193990
Thrust Dynamic Load (N) - 49730
Moment Static Load (Nm) - 25130
Moment Dynamic Load (Nm) - 6740

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
D - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
