KD200XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KD200XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

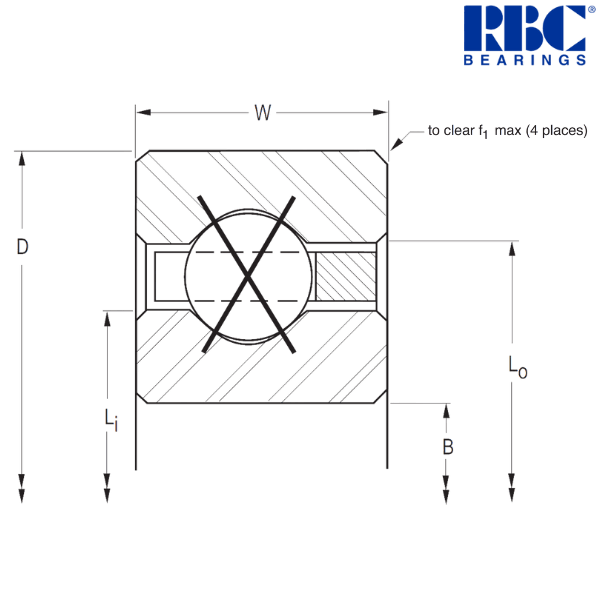

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 20
Outside Diameter (D) inch - 21
Width (W) inch - 0.5
Land Diameter of Inner Ring (Li) inch - 20.375
Land Diameter of Outer Ring (Lo) inch - 20.625
Housing Fillet (f1) inch - 0.06
Ball Diameter (inch) - 0.5
Ball Quantity - 123
Approximate Weight (lbs) - 3.85
Radial Static Load (lbf) - 14020
Radial Dynamic Load (lbf) - 5534
Thrust Static Load (lbf) - 35060
Thrust Dynamic Load (lbf) - 9670
Moment Static Load (lbf) - 143700
Moment Dynamic Load (lbf) - 42561

Metric :
-----------------------------------------
Bore Diameter (B) mm - 508
Outside Diameter (D) mm - 533.4
Width (W) mm - 12.7
Land Diameter of Inner Ring (Li) mm - 517.53
Land Diameter of Outer Ring (Lo) mm - 523.88
Housing Fillet (f1) mm - 1.52
Approximate Weight (kg) - 1.746
Radial Static Load (N) - 62360
Radial Dynamic Load (N) - 24620
Thrust Static Load (N) - 155950
Thrust Dynamic Load (N) - 43010
Moment Static Load (Nm) - 16240
Moment Dynamic Load (Nm) - 4810

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
D - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
