KD180XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KD180XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

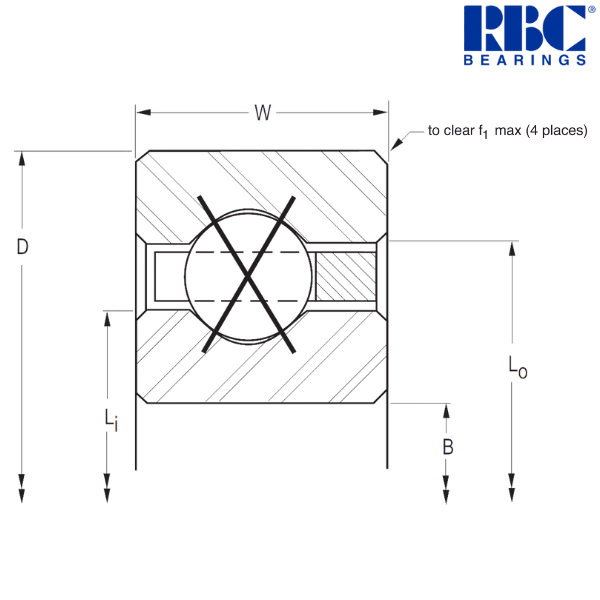

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 18
Outside Diameter (D) inch - 19
Width (W) inch - 0.5
Land Diameter of Inner Ring (Li) inch - 18.375
Land Diameter of Outer Ring (Lo) inch - 18.625
Housing Fillet (f1) inch - 0.06
Ball Diameter (inch) - 0.5
Ball Quantity - 111
Approximate Weight (lbs) - 3.48
Radial Static Load (lbf) - 12650
Radial Dynamic Load (lbf) - 5226
Thrust Static Load (lbf) - 31640
Thrust Dynamic Load (lbf) - 9030
Moment Static Load (lbf) - 117000
Moment Dynamic Load (lbf) - 36268

Metric :
-----------------------------------------
Bore Diameter (B) mm - 457.2
Outside Diameter (D) mm - 482.6
Width (W) mm - 12.7
Land Diameter of Inner Ring (Li) mm - 466.73
Land Diameter of Outer Ring (Lo) mm - 473.08
Housing Fillet (f1) mm - 1.52
Approximate Weight (kg) - 1.579
Radial Static Load (N) - 56270
Radial Dynamic Load (N) - 23250
Thrust Static Load (N) - 140740
Thrust Dynamic Load (N) - 40170
Moment Static Load (Nm) - 13220
Moment Dynamic Load (Nm) - 4100

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
D - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
