Description
Brand - ZEN
Item Number - KD120CP0 ZEN

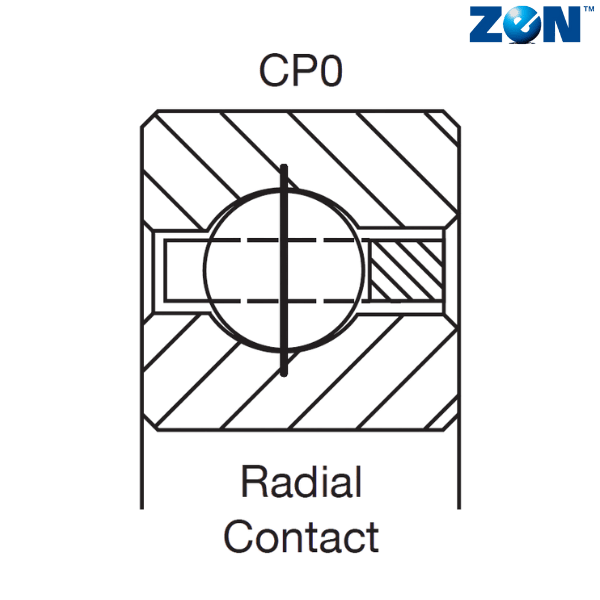

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 12
Inner Diameter (mm) - 304.8
Outer Diameter (inch) - 13
Outer Diameter (mm) - 330.2
Width (inch) - 0.5
Width (mm) - 12.7
Dynamic Load Rating (C) N - 17100
Static Load Rating (C) N - 34500
Limiting Speed (rpm) Grease - 1710
Approximate Weight (kg) - 1.03
Alternative Part Number in FAG - L10TA1200
Alternative Part Number in INA - CSCD120
Alternative Part Number in SKF - FPCD1200
** Images are for representation purposes only
