Description
Brand - ZEN
Item Number - KD100CP0 ZEN

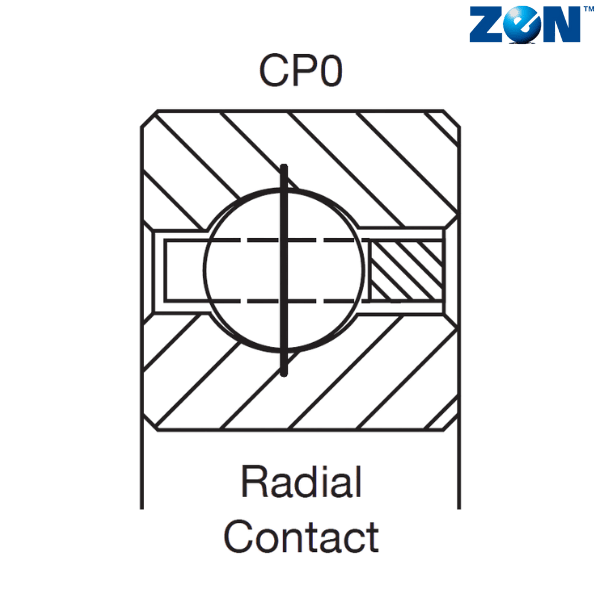

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 10
Inner Diameter (mm) - 254
Outer Diameter (inch) - 11
Outer Diameter (mm) - 279.4
Width (inch) - 0.5
Width (mm) - 12.7
Dynamic Load Rating (C) N - 17100
Static Load Rating (C) N - 29000
Limiting Speed (rpm) Grease - 2060
Approximate Weight (kg) - 0.85
Alternative Part Number in FAG - L10TA1000
Alternative Part Number in INA - CSCD100
Alternative Part Number in SKF - FPCD1000
** Images are for representation purposes only
