Description
Brand - ZEN
Item Number - KD090CP0 ZEN

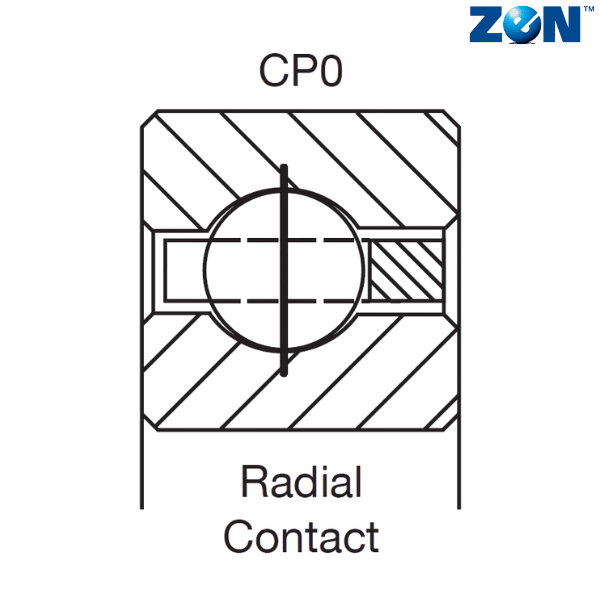

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 9
Inner Diameter (mm) - 228.6
Outer Diameter (inch) - 10
Outer Diameter (mm) - 254
Width (inch) - 0.5
Width (mm) - 12.7
Dynamic Load Rating (C) N - 16400
Static Load Rating (C) N - 26000
Limiting Speed (rpm) Grease - 2280
Approximate Weight (kg) - 0.78
Alternative Part Number in FAG - L10TA900
Alternative Part Number in INA - CSCD090
Alternative Part Number in SKF - FPCD900
** Images are for representation purposes only
