Description
Brand - ZEN
Item Number - KD055AR0 ZEN

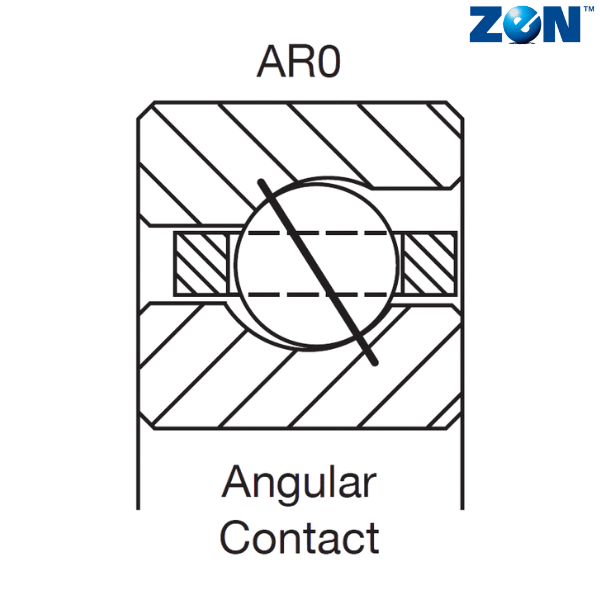

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 5.5
Inner Diameter (mm) - 139.7
Outer Diameter (inch) - 6.5
Outer Diameter (mm) - 165.1
Width (inch) - 0.5
Width (mm) - 12.7
Dynamic Load Rating (C) N - 13700
Static Load Rating (C) N - 18800
Limiting Speed (rpm) Grease - 3700
Approximate Weight (kg) - 0.48
Alternative Part Number in FAG - L15TA508
Alternative Part Number in INA - CSED055
Alternative Part Number in NSK - NBA13912
Alternative Part Number in SKF - FPAD508

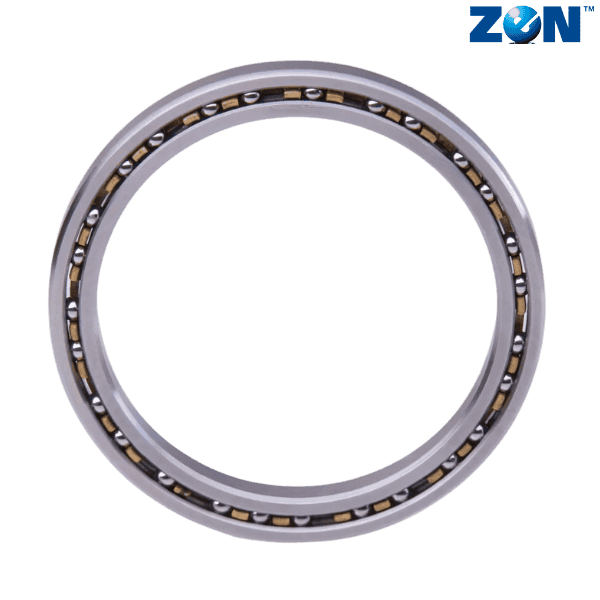

** Images are for representation purposes only
