Description
Brand - ZEN
Item Number - KD047CP0 ZEN

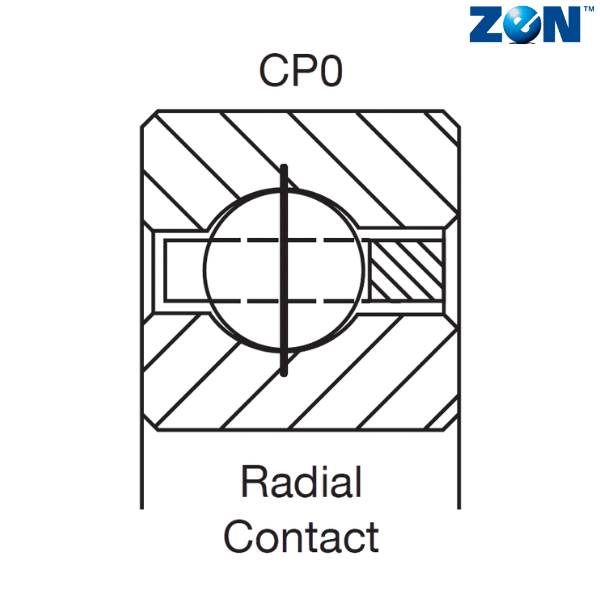

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 4.75
Inner Diameter (mm) - 120.65
Outer Diameter (inch) - 5.75
Outer Diameter (mm) - 146.05
Width (inch) - 0.5
Width (mm) - 12.7
Dynamic Load Rating (C) N - 8410
Static Load Rating (C) N - 15700
Limiting Speed (rpm) Grease - 3810
Approximate Weight (kg) - 0.43
Alternative Part Number in FAG - L10TA412
Alternative Part Number in INA - CSCD047
Alternative Part Number in NSK - NBC12012
Alternative Part Number in SKF - FPCD412
** Images are for representation purposes only
