Description
Brand - ZEN
Item Number - KD040CP0 ZEN

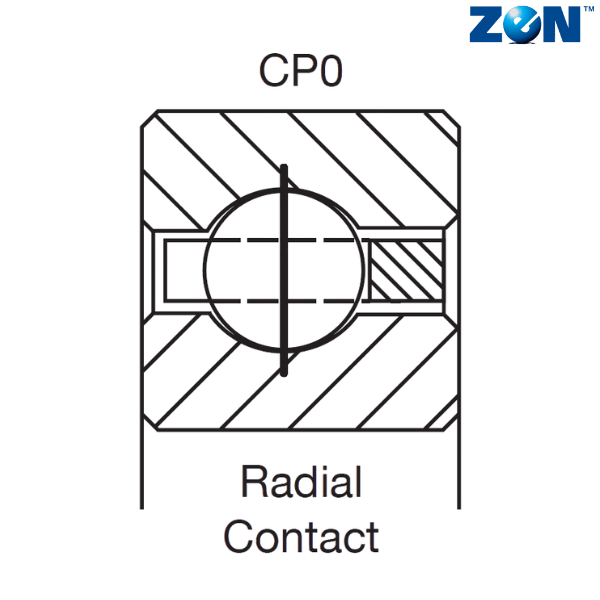

Category - Ultra Thin Section Bearing
Inner Diameter (inch) - 4
Inner Diameter (mm) - 101.6
Outer Diameter (inch) - 5
Outer Diameter (mm) - 127
Width (inch) - 0.5
Width (mm) - 12.7
Dynamic Load Rating (C) N - 12400
Static Load Rating (C) N - 11900
Limiting Speed (rpm) Grease - 4900
Approximate Weight (kg) - 0.35
Alternative Part Number in FAG - L10TA400
Alternative Part Number in INA - CSCD040
Alternative Part Number in NSK - NBC10112
Alternative Part Number in SKF - FPCD400
** Images are for representation purposes only
