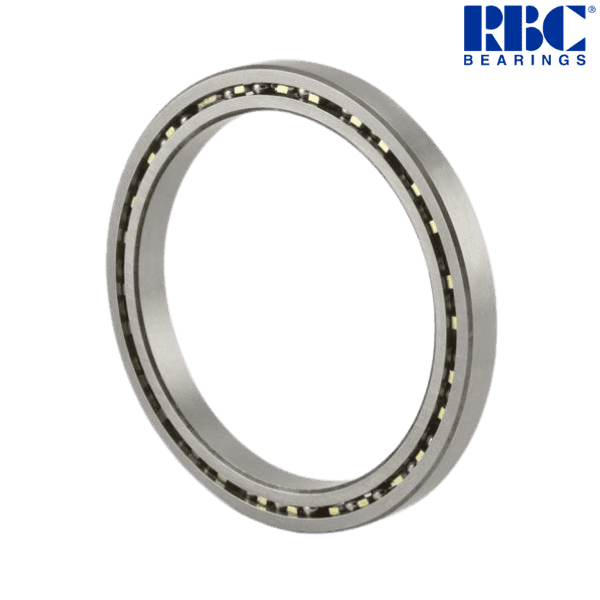

KC300XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KC300XP0*RBC

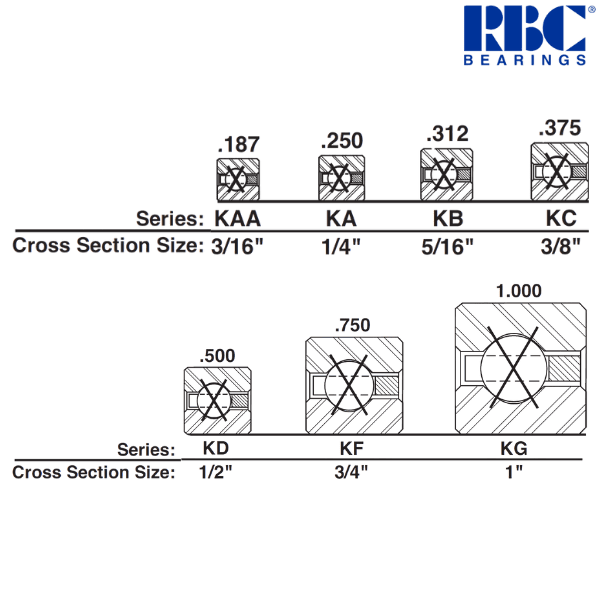

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

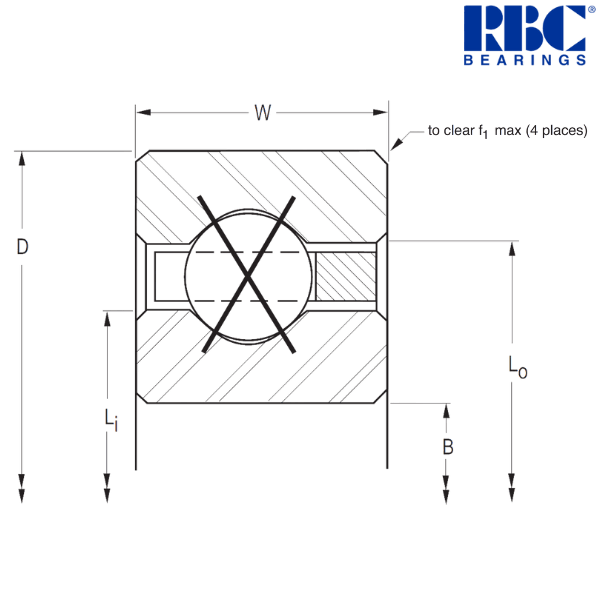

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 30
Outside Diameter (D) inch - 30.75
Width (W) inch - 0.375
Land Diameter of Inner Ring (Li) inch - 30.281
Land Diameter of Outer Ring (Lo) inch - 30.469
Housing Fillet (f1) inch - 0.04
Ball Diameter (inch) - 0.1875
Ball Quantity - 243
Approximate Weight (lbs) - 3.21
Radial Static Load (lbf) - 14610
Radial Dynamic Load (lbf) - 4338
Thrust Static Load (lbf) - 36520
Thrust Dynamic Load (lbf) - 8050
Moment Static Load (lbf) - 221900
Moment Dynamic Load (lbf) - 49436

Metric :
-----------------------------------------
Bore Diameter (B) mm - 762
Outside Diameter (D) mm - 781.05
Width (W) mm - 9.525
Land Diameter of Inner Ring (Li) mm - 769.14
Land Diameter of Outer Ring (Lo) mm - 773.91
Housing Fillet (f1) mm - 1.02
Approximate Weight (kg) - 1.456
Radial Static Load (N) - 64990
Radial Dynamic Load (N) - 19300
Thrust Static Load (N) - 162450
Thrust Dynamic Load (N) - 35810
Moment Static Load (Nm) - 25070
Moment Dynamic Load (Nm) - 5590

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
C - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
