KC250XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KC250XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

Imperial :
-----------------------------------------

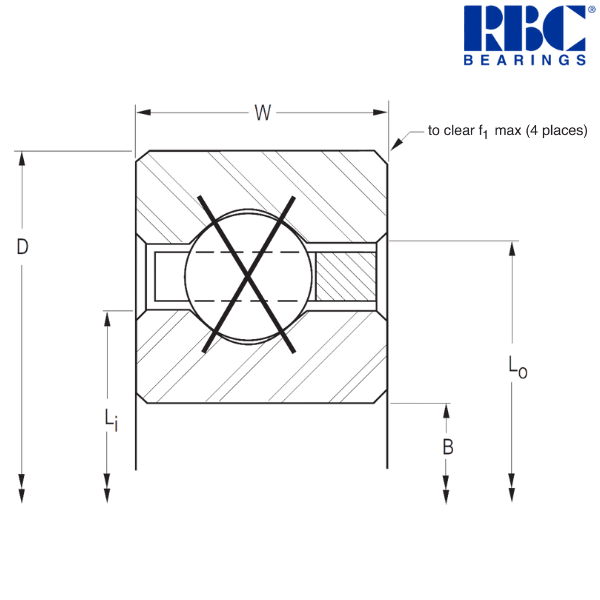

Bore Diameter (B) inch - 25
Outside Diameter (D) inch - 25.75
Width (W) inch - 0.375
Land Diameter of Inner Ring (Li) inch - 25.281
Land Diameter of Outer Ring (Lo) inch - 25.469
Housing Fillet (f1) inch - 0.04
Ball Diameter (inch) - 0.5
Ball Quantity - 203
Approximate Weight (lbs) - 2.69
Radial Static Load (lbf) - 12200
Radial Dynamic Load (lbf) - 3941
Thrust Static Load (lbf) - 30510
Thrust Dynamic Load (lbf) - 7140
Moment Static Load (lbf) - 154800
Moment Dynamic Load (lbf) - 37518

Metric :
-----------------------------------------
Bore Diameter (B) mm - 635
Outside Diameter (D) mm - 654.05
Width (W) mm - 9.525
Land Diameter of Inner Ring (Li) mm - 642.14
Land Diameter of Outer Ring (Lo) mm - 646.91
Housing Fillet (f1) mm - 1.02
Approximate Weight (kg) - 1.22
Radial Static Load (N) - 54270
Radial Dynamic Load (N) - 17530
Thrust Static Load (N) - 135720
Thrust Dynamic Load (N) - 31760
Moment Static Load (Nm) - 17490
Moment Dynamic Load (Nm) - 4240

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields

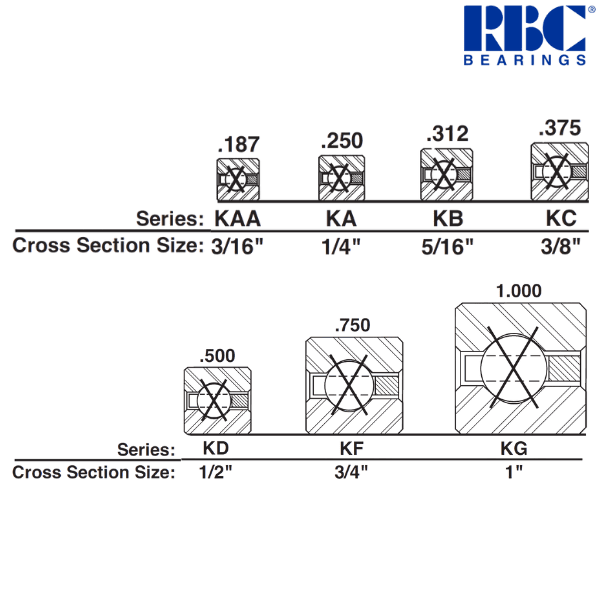

C - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
