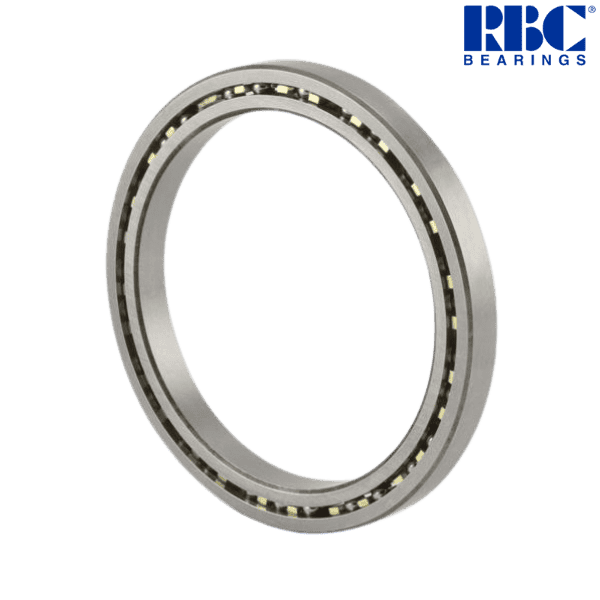

KC200XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KC200XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

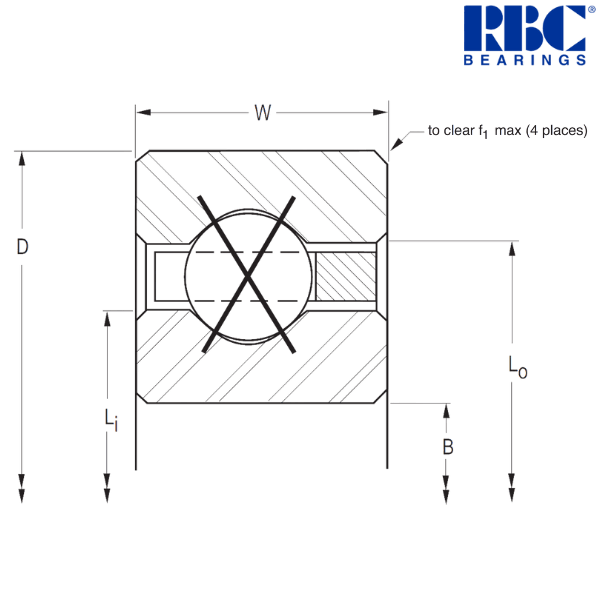

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 20
Outside Diameter (D) inch - 20.75
Width (W) inch - 0.375
Land Diameter of Inner Ring (Li) inch - 20.281
Land Diameter of Outer Ring (Lo) inch - 20.469
Housing Fillet (f1) inch - 0.04
Ball Diameter (inch) - 0.375
Ball Quantity - 163
Approximate Weight (lbs) - 2.16
Radial Static Load (lbf) - 9800
Radial Dynamic Load (lbf) - 3492
Thrust Static Load (lbf) - 24500
Thrust Dynamic Load (lbf) - 6170
Moment Static Load (lbf) - 99830
Moment Dynamic Load (lbf) - 26695

Metric :
-----------------------------------------
Bore Diameter (B) mm - 508
Outside Diameter (D) mm - 527.05
Width (W) mm - 9.525
Land Diameter of Inner Ring (Li) mm - 515.14
Land Diameter of Outer Ring (Lo) mm - 519.91
Housing Fillet (f1) mm - 1.02
Approximate Weight (kg) - 0.98
Radial Static Load (N) - 43590
Radial Dynamic Load (N) - 15530
Thrust Static Load (N) - 108980
Thrust Dynamic Load (N) - 27450
Moment Static Load (Nm) - 11280
Moment Dynamic Load (Nm) - 3020

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields

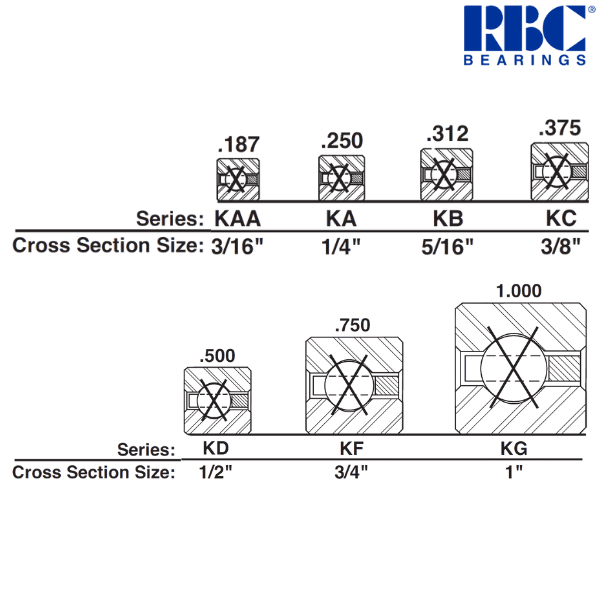

C - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
