KC180XP0 RBC

Brand - RBC
Item Number - KC180XP0*RBC

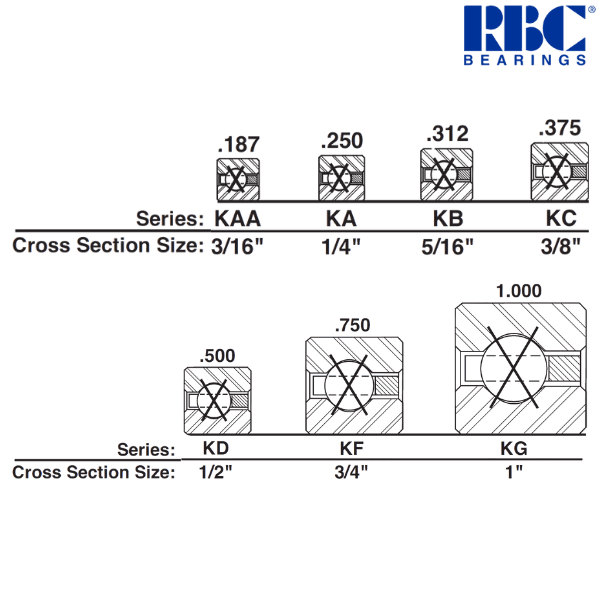

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

Imperial :
-----------------------------------------

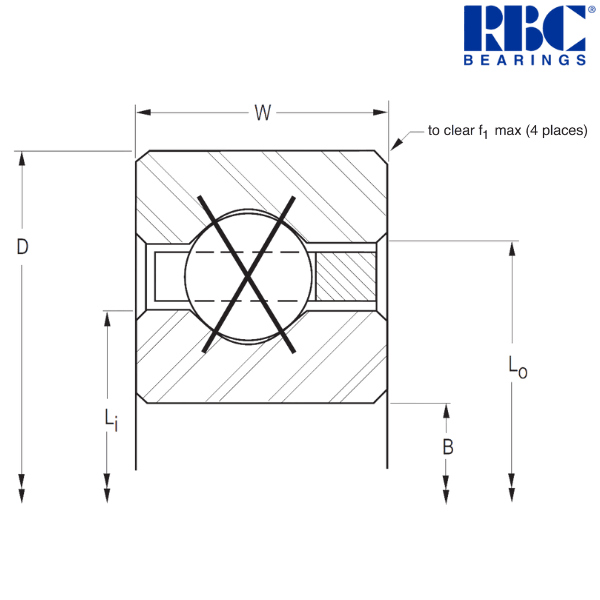

Bore Diameter (B) inch - 18
Outside Diameter (D) inch - 18.75
Width (W) inch - 0.375
Land Diameter of Inner Ring (Li) inch - 18.281
Land Diameter of Outer Ring (Lo) inch - 18.469
Housing Fillet (f1) inch - 0.04
Ball Diameter (inch) - 0.375
Ball Quantity - 147
Approximate Weight (lbs) - 1.94
Radial Static Load (lbf) - 8840
Radial Dynamic Load (lbf) - 3295
Thrust Static Load (lbf) - 22090
Thrust Dynamic Load (lbf) - 5760
Moment Static Load (lbf) - 81190
Moment Dynamic Load (lbf) - 22712

Metric :
-----------------------------------------
Bore Diameter (B) mm - 457.2
Outside Diameter (D) mm - 476.25
Width (W) mm - 9.525
Land Diameter of Inner Ring (Li) mm - 464.34
Land Diameter of Outer Ring (Lo) mm - 469.11
Housing Fillet (f1) mm - 1.02
Approximate Weight (kg) - 0.88
Radial Static Load (N) - 39320
Radial Dynamic Load (N) - 14660
Thrust Static Load (N) - 98260
Thrust Dynamic Load (N) - 25620
Moment Static Load (Nm) - 9170
Moment Dynamic Load (Nm) - 2570

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
C - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
