KB200XP0 RBC

Brand - RBC
Item Number - KB200XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

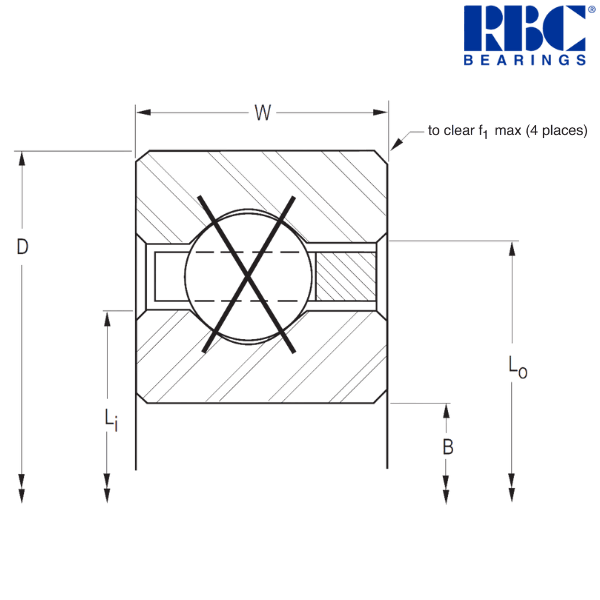

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 20
Outside Diameter (D) inch - 20.625
Width (W) inch - 0.3125
Land Diameter of Inner Ring (Li) inch - 20.234
Land Diameter of Outer Ring (Lo) inch - 20.391
Housing Fillet (f1) inch - 0.032
Ball Diameter (inch) - 0.25
Ball Quantity - 203
Approximate Weight (lbs) - 1.5
Radial Static Load (lbf) - 8250
Radial Dynamic Load (lbf) - 2731
Thrust Static Load (lbf) - 20620
Thrust Dynamic Load (lbf) - 4850
Moment Static Load (lbf) - 83780
Moment Dynamic Load (lbf) - 20813

Metric :
-----------------------------------------
Bore Diameter (B) mm - 508
Outside Diameter (D) mm - 523.875
Width (W) mm - 7.938
Land Diameter of Inner Ring (Li) mm - 513.94
Land Diameter of Outer Ring (Lo) mm - 517.93
Housing Fillet (f1) mm - 0.81
Approximate Weight (kg) - 0.68
Radial Static Load (N) - 36700
Radial Dynamic Load (N) - 12150
Thrust Static Load (N) - 91720
Thrust Dynamic Load (N) - 21570
Moment Static Load (Nm) - 9470
Moment Dynamic Load (Nm) - 2350

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
