KB030CP0 RBC

Brand - RBC
Item Number - KB030CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

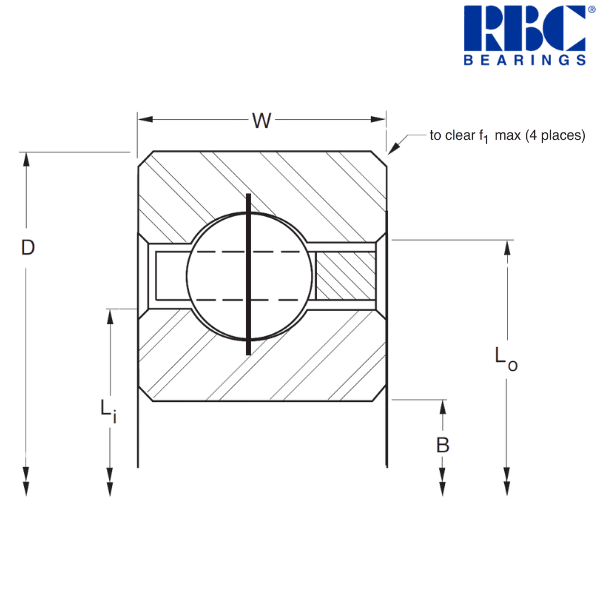

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3 inch
Outside Diameter (D) - 3.625 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 3.234 inch
Land Diameter of Outer Ring (Lo) - 3.391 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Approximate Weight - 0.24 lbs
Radial Static Load - 1340 lbf
Radial Dynamic Load - 920 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 76.2 mm
Outside Diameter (D) - 92.075 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 82.14 mm
Land Diameter of Outer Ring (Lo) - 86.13 mm
Housing Fillet (f1) - 0.81 mm
Ball Quantity - 33 pcs.
Approximate Weight - 0.109 kg
Radial Static Load - 5960 N
Radial Dynamic Load - 4090 N

Description of Suffixes and Prefixes :
K - No seals or shields
B - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
