KA070CP0 RBC

Brand - RBC
Item Number - KA070CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

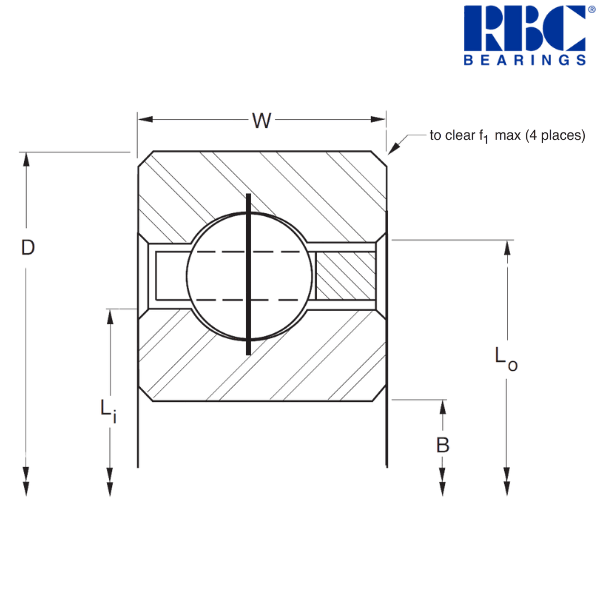

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 7.5 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 7.188 inch
Land Diameter of Outer Ring (Lo) - 7.313 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Approximate Weight - 0.31 lbs
Radial Static Load - 2200 lbf
Radial Dynamic Load - 870 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.8 mm
Outside Diameter (D) - 190.5 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 182.58 mm
Land Diameter of Outer Ring (Lo) - 185.75 mm
Housing Fillet (f1) - 0.64 mm
Ball Quantity - 87 pcs.
Approximate Weight - 0.141 kg
Radial Static Load - 9790 N
Radial Dynamic Load - 3870 N

Description of Suffixes and Prefixes :
K - No seals or shields
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
