KA050AR0 RBC

Brand - RBC
Item Number - KA050AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

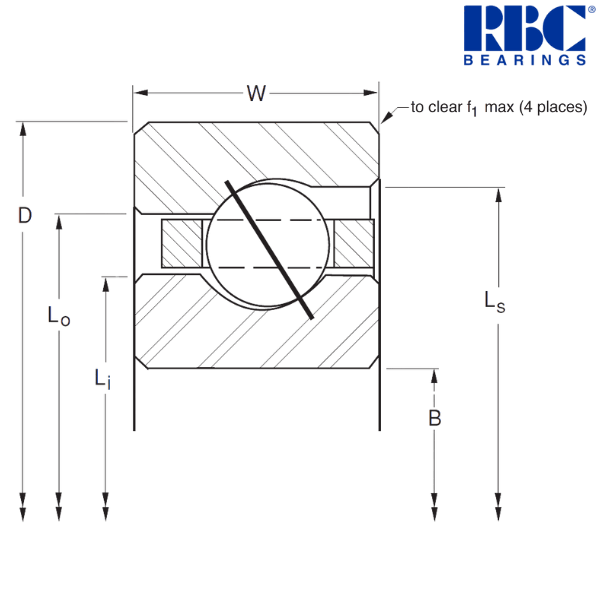

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 5.5 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 5.188 inch
Land Diameter of Outer Ring (Lo) - 5.313 inch
Land Diameter of Counter Bore (Ls) - 5.375 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 84 pcs.
Approximate Weight - 0.24 lbs
Radial Static Load - 1840 lbf
Radial Dynamic Load - 810 lbf
Thrust Static Load - 5310 lbf
Thrust Dynamic Load - 2360 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 127 mm
Outside Diameter (D) - 139.7 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 131.78 mm
Land Diameter of Outer Ring (Lo) - 134.95 mm
Land Diameter of Counter Bore (Ls) - 136.53 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.109 kg
Radial Static Load - 8180 N
Radial Dynamic Load - 3600 N
Thrust Static Load - 23620 N
Thrust Dynamic Load - 10500 N

Description of Suffixes and Prefixes :
K - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
