KA030XP0 RBC

Brand - RBC
Item Number - KA030XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

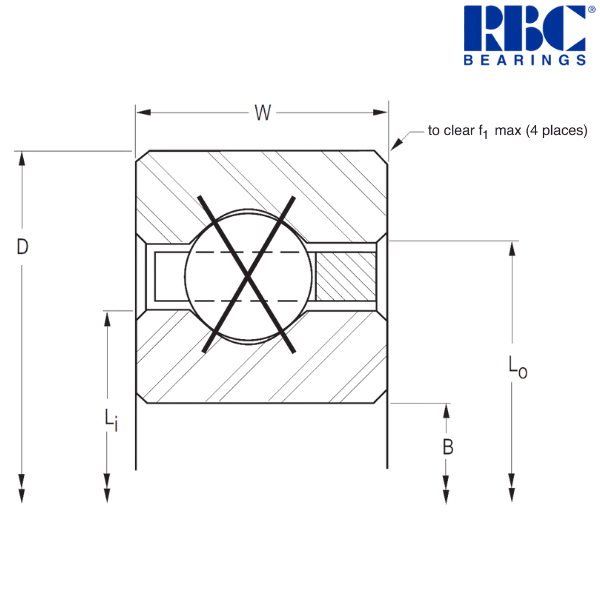

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3 inch
Outside Diameter (D) - 3.5 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 3.188 inch
Land Diameter of Outer Ring (Lo) - 3.313 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 39 pcs.
Approximate Weight - 0.15 lbs
Radial Static Load - 990 lbf
Radial Dynamic Load - 643 lbf
Thrust Static Load - 2470 lbf
Thrust Dynamic Load - 1410 lbf
Moment Static Load - 1600 lbf
Moment Dynamic Load - 920 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 76.2 mm
Outside Diameter (D) - 88.9 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 80.98 mm
Land Diameter of Outer Ring (Lo) - 84.15 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.068 kg
Radial Static Load - 4400 N
Radial Dynamic Load - 2860 N
Thrust Static Load - 10990 N
Thrust Dynamic Load - 6270 N
Moment Static Load - 180 Nm
Moment Dynamic Load - 100 Nm

Description of Suffixes and Prefixes :
K - No seals or shields
A - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
