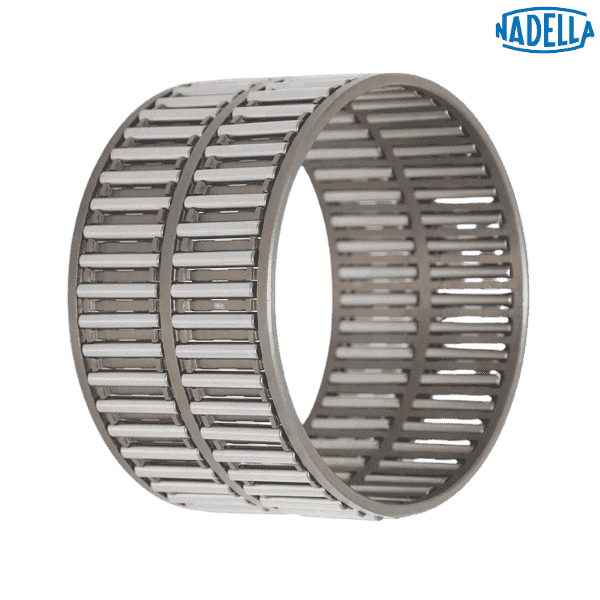

K60x68x30ZW NADELLA

Brand - NADELLA
Item Number - K60x68x30ZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row

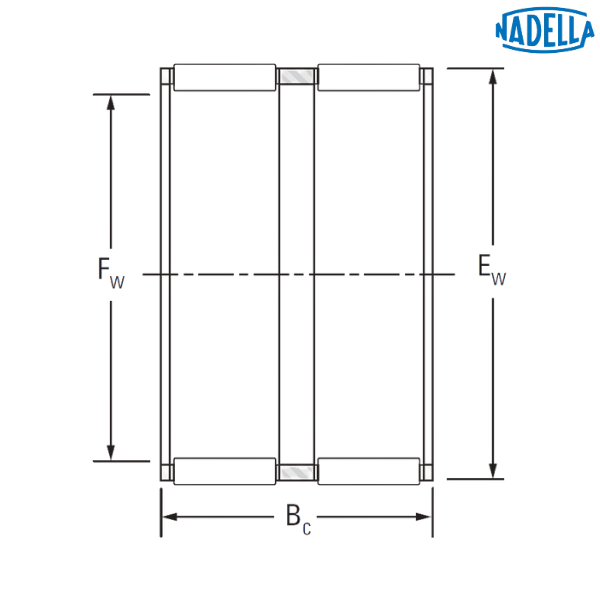

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 60 mm
Diameter of the Inner Raceway (Fw) - 60 mm
Dimension (Ew) - 68 mm
Dimension (Bc) - 30 mm
Dynamic Load Rating (C) - 46.4 mm
Static Load Rating (C0) - 90.1 mm
Speed Rating with Grease - 4600 rpm
Speed Rating with Oil - 7100 rpm
Maximum Mounting Dimension (S) - 60 mm
Minimum Mounting Dimension (S) - 59.987 mm
Maximum Mounting Dimension (H) - 68.029 mm
Minimum Mounting Dimension (H) - 68.01 mm
Weight - 0.119 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
ZW - Double Row

♦♦ Images are for representation purposes only
