K5x9x13TN NADELLA

Brand - NADELLA
Item Number - K5x9x13TN NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row

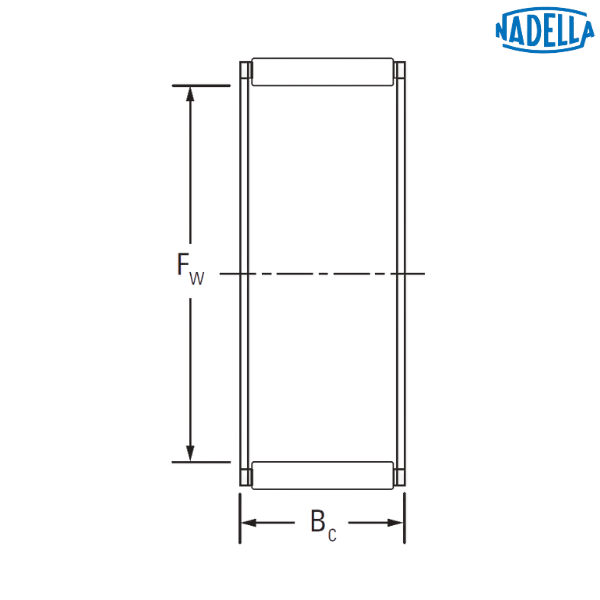

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 5 mm
Diameter of the Inner Raceway (Fw) - 5 mm
Dimension (Ew) - 9 mm
Dimension (Bc) - 13 mm
Dynamic Load Rating (C) - 4.29 mm
Static Load Rating (C0) - 3.55 mm
Speed Rating with Grease - 26000 rpm
Speed Rating with Oil - 40000 rpm
Maximum Mounting Dimension (S) - 5 mm
Minimum Mounting Dimension (S) - 4.995 mm
Maximum Mounting Dimension (H) - 8.014 mm
Minimum Mounting Dimension (H) - 9.005 mm
Weight - 0.002 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
TN - Molded Cage of Reinforced Engineered Polymer
