Description
Brand - NADELLA
Item Number - K49x55x32HZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 49 mm

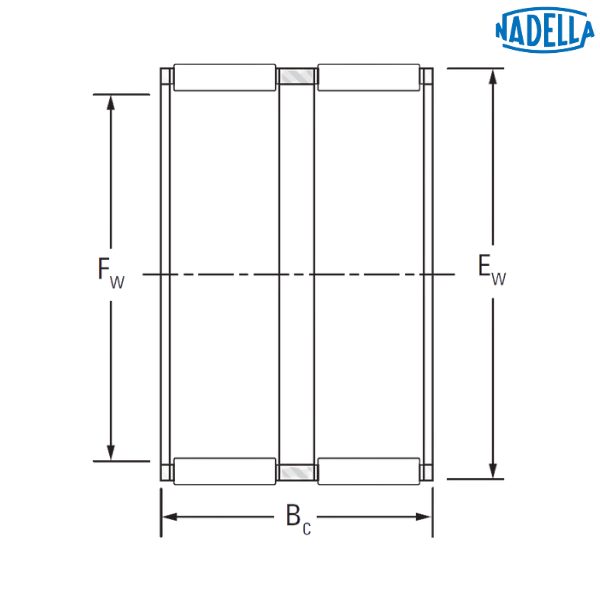

Diameter of the Inner Raceway (Fw) - 49 mm
Dimension (Ew) - 55 mm
Dimension (Bc) - 32 mm
Dynamic Load Rating (C) - 40.2 mm
Static Load Rating (C0) - 86.4 mm
Speed Rating with Grease - 5600 rpm
Speed Rating with Oil - 8600 rpm
Maximum Mounting Dimension (S) - 49 mm
Minimum Mounting Dimension (S) - 48.989 mm
Maximum Mounting Dimension (H) - 55.029 mm
Minimum Mounting Dimension (H) - 55.01 mm
Weight - 0.08 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
ZW - Double Row

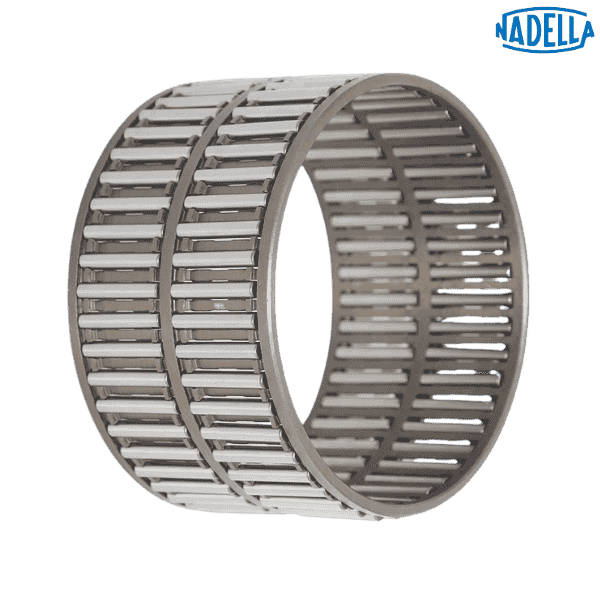

♦♦ Images are for representation purposes only
Item Number - K49x55x32HZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 49 mm
Diameter of the Inner Raceway (Fw) - 49 mm
Dimension (Ew) - 55 mm
Dimension (Bc) - 32 mm
Dynamic Load Rating (C) - 40.2 mm
Static Load Rating (C0) - 86.4 mm
Speed Rating with Grease - 5600 rpm
Speed Rating with Oil - 8600 rpm
Maximum Mounting Dimension (S) - 49 mm
Minimum Mounting Dimension (S) - 48.989 mm
Maximum Mounting Dimension (H) - 55.029 mm
Minimum Mounting Dimension (H) - 55.01 mm
Weight - 0.08 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
ZW - Double Row
♦♦ Images are for representation purposes only
