Description
Brand - FAG
Item Number - K47890-47820 FAG

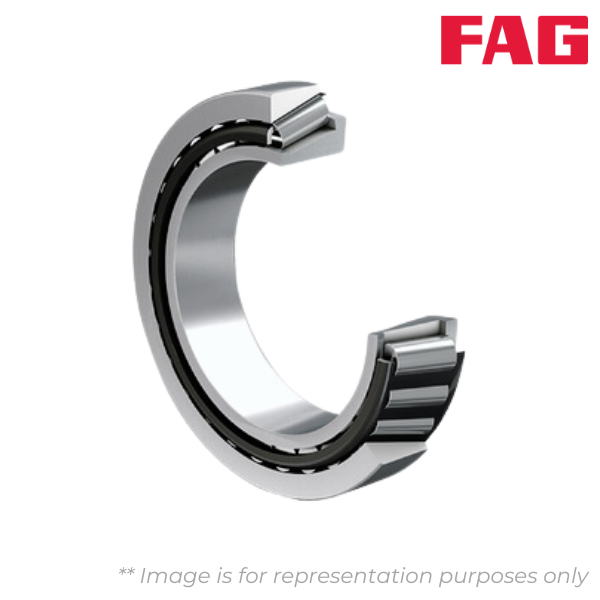

Category - Tapered Roller Bearing Single Row
Weight (m) kg - 2.11

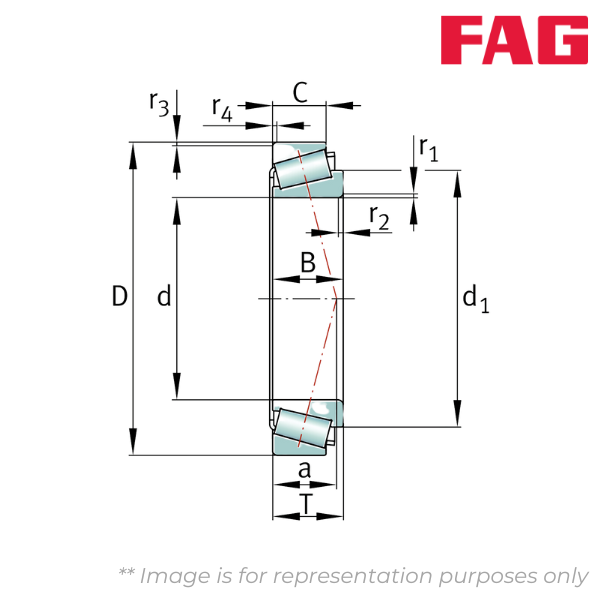

Inner Diameter (d) mm - 92.075
Inner Diameter (d) inch - 3.625
Outer Diameter (D) mm - 146.05
Outer Diameter (D) inch - 5.75
Inner Ring Width (B) mm - 34.925
Inner Ring Width (B) inch - 1.375
Outer Ring Width (C) mm - 26.195
Outer Ring Width (C) inch - 1.0313
Total Width (T) mm - 33.338
Total Width (T) inch - 1.3125
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.13
Distance Between The Apexes of The Pressure Cones (a) mm - 33
Distance Between The Apexes of The Pressure Cones (a) inch - 1.299
Guidance Rib Diameter of Inner Ring (d1) mm - 122.2
Guidance Rib Diameter of Inner Ring (d1) inch - 4.811
Maximum Diameter of Shaft Shoulder (da) mm - 101
Maximum Diameter of Shaft Shoulder (da) inch - 3.976
Minimum diameter of shaft shoulder (db) mm - 107
Minimum diameter of shaft shoulder (db) inch - 4.213
Minimum Diameter of Housing Shoulder (Da) mm - 131
Minimum Diameter of Housing Shoulder (Da) inch - 5.157
Minimum Diameter of Housing Shoulder (Db) mm - 140
Minimum Diameter of Housing Shoulder (Db) inch - 5.512
Minimum Axial Space (Ca) mm - 4.5
Minimum Axial Space (Ca) inch - 0.177
Minimum Axial Space (Cb) mm - 7
Minimum Axial Space (Cb) inch - 0.276
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 3.3
Maximum Fillet Radius of Housing (rb) inch - 0.13
Basic Dynamic Radial Load Rating (Cr) kN - 167
Basic Static Radial Load Rating (C0r) kN - 275
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.45
Dynamic Axial Load Factor (Y) - 1.34
Static Axial Load Factor (Y0) - 0.74
Fatigue Load Limit, Radial (Cur) kN - 33
Limiting Speed (nG) min–1 - 4650
