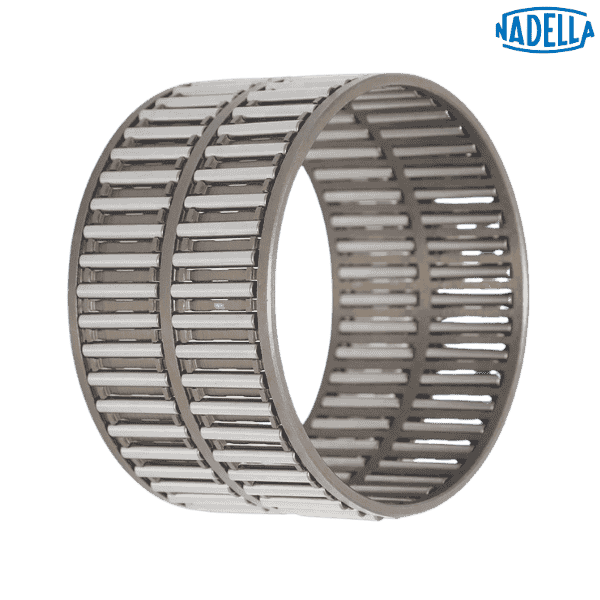

K44x50x30HZW NADELLA

Brand - NADELLA
Item Number - K44x50x30HZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row

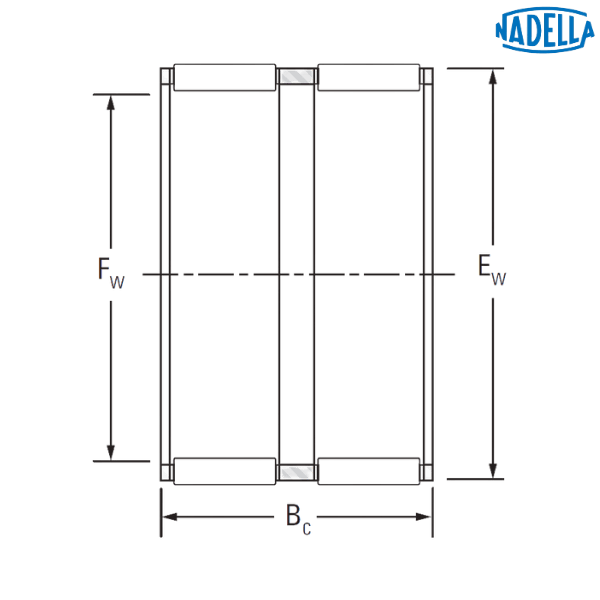

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 44 mm
Diameter of the Inner Raceway (Fw) - 44 mm
Dimension (Ew) - 50 mm
Dimension (Bc) - 30 mm
Dynamic Load Rating (C) - 35.5 mm
Static Load Rating (C0) - 70.5 mm
Speed Rating with Grease - 6400 rpm
Speed Rating with Oil - 9900 rpm
Maximum Mounting Dimension (S) - 44 mm
Minimum Mounting Dimension (S) - 43.989 mm
Maximum Mounting Dimension (H) - 50.325 mm
Minimum Mounting Dimension (H) - 50.009 mm
Weight - 0.068 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
ZW - Double Row

♦♦ Images are for representation purposes only
