K419-414 FAG

Brand - FAG
Item Number - K419-414 FAG

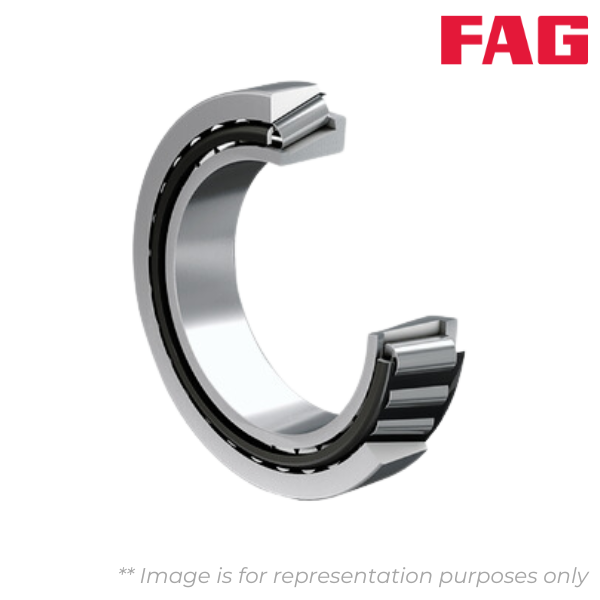

Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.79

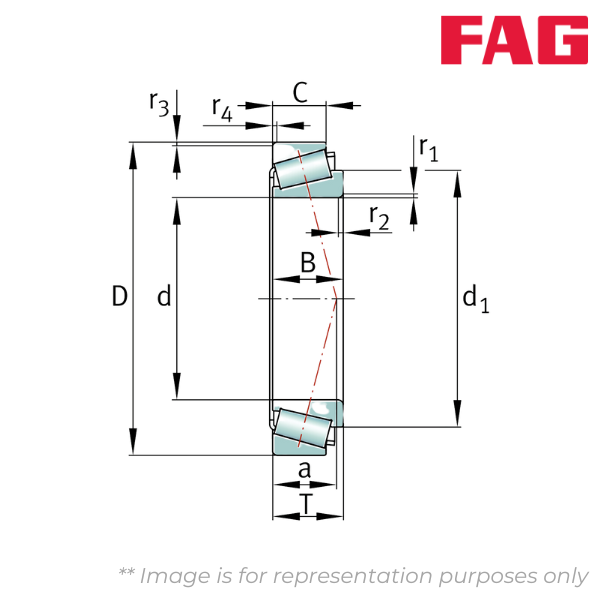

Inner Diameter (d) mm - 41.275
Inner Diameter (d) inch - 1.625
Outer Diameter (D) mm - 88.5
Outer Diameter (D) inch - 3.4843
Inner Ring Width (B) mm - 29.083
Inner Ring Width (B) inch - 1.145
Outer Ring Width (C) mm - 22.225
Outer Ring Width (C) inch - 0.875
Total Width (T) mm - 26.988
Total Width (T) inch - 1.0625
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.06
Distance Between The Apexes of The Pressure Cones (a) mm - 17
Distance Between The Apexes of The Pressure Cones (a) inch - 0.669
Guidance Rib Diameter of Inner Ring (d1) mm - 60.4
Guidance Rib Diameter of Inner Ring (d1) inch - 2.378
Maximum Diameter of Shaft Shoulder (da) mm - 47
Maximum Diameter of Shaft Shoulder (da) inch - 1.85
Minimum diameter of shaft shoulder (db) mm - 54
Minimum diameter of shaft shoulder (db) inch - 2.126
Minimum Diameter of Housing Shoulder (Da) mm - 77
Minimum Diameter of Housing Shoulder (Da) inch - 3.031
Minimum Diameter of Housing Shoulder (Db) mm - 80
Minimum Diameter of Housing Shoulder (Db) inch - 3.15
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 6
Minimum Axial Space (Cb) inch - 0.236
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 1.5
Maximum Fillet Radius of Housing (rb) inch - 0.06
Basic Dynamic Radial Load Rating (Cr) kN - 89
Basic Static Radial Load Rating (C0r) kN - 98
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.26
Dynamic Axial Load Factor (Y) - 2.27
Static Axial Load Factor (Y0) - 1.25
Fatigue Load Limit, Radial (Cur) kN - 11.7
Limiting Speed (nG) min–1 - 8900
