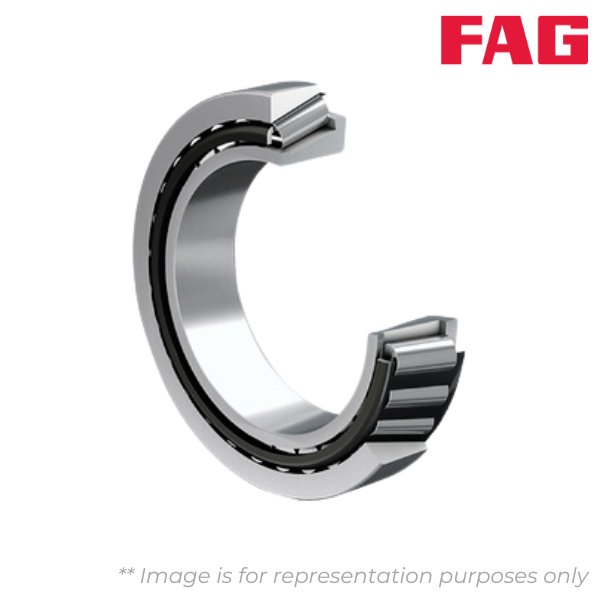

K39580-39528 FAG

Brand - FAG
Item Number - K39580-39528 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 1.76

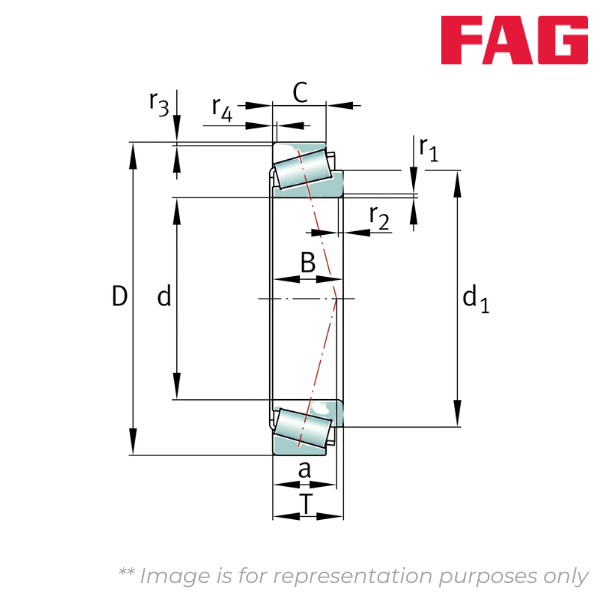

Inner Diameter (d) mm - 57.15
Inner Diameter (d) inch - 2.25
Outer Diameter (D) mm - 119.985
Outer Diameter (D) inch - 4.7238
Inner Ring Width (B) mm - 30.162
Inner Ring Width (B) inch - 1.1875
Outer Ring Width (C) mm - 26.949
Outer Ring Width (C) inch - 1.061
Total Width (T) mm - 32.75
Total Width (T) inch - 1.2894
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 0.8
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.03
Distance Between The Apexes of The Pressure Cones (a) mm - 26
Distance Between The Apexes of The Pressure Cones (a) inch - 1.024
Guidance Rib Diameter of Inner Ring (d1) mm - 89.5
Guidance Rib Diameter of Inner Ring (d1) inch - 3.524
Maximum Diameter of Shaft Shoulder (da) mm - 66
Maximum Diameter of Shaft Shoulder (da) inch - 2.598
Minimum diameter of shaft shoulder (db) mm - 72
Minimum diameter of shaft shoulder (db) inch - 2.835
Minimum Diameter of Housing Shoulder (Da) mm - 101
Minimum Diameter of Housing Shoulder (Da) inch - 3.976
Minimum Diameter of Housing Shoulder (Db) mm - 107
Minimum Diameter of Housing Shoulder (Db) inch - 4.213
Minimum Axial Space (Ca) mm - 2.5
Minimum Axial Space (Ca) inch - 0.098
Minimum Axial Space (Cb) mm - 5.5
Minimum Axial Space (Cb) inch - 0.217
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 0.8
Maximum Fillet Radius of Housing (rb) inch - 0.03
Basic Dynamic Radial Load Rating (Cr) kN - 137
Basic Static Radial Load Rating (C0r) kN - 192
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.34
Dynamic Axial Load Factor (Y) - 1.77
Static Axial Load Factor (Y0) - 0.97
Fatigue Load Limit, Radial (Cur) kN - 23.8
Limiting Speed (nG) min–1 - 6200
