K37425/K37625 (K161710) TIMKEN

Brand - TIMKEN
Item Number - K37425/K37625 (K161710) TIMKEN
Also Known As - K37425 - K37625 (K161710)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 107.95
Bore Diameter (d) inch - 4.25
Outer Diameter (D) mm - 158.75
Outer Diameter (D) inch - 6.25
Width (T) mm - 46.04
Width (T) inch - 1.8126
Width (B) mm - 42.876
Width (B) inch - 1.688
Dynamic Radial Rating (C1) N - 238000
Dynamic Radial Rating (C1) lbf - 53400
Factor (e) - 0.61
Factor (Y1) - 1.11
Factor (Y2) - 1.66
Dynamic Radial Rating (90 million revolutions) (C90) N - 35400
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 7960
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 36700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8250
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 61600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 13900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.96
Maximum Shaft Fillet Radius (R) mm - 0.5
Maximum Shaft Fillet Radius (R) inch - 0.02
Backing Shoulder Diameter (db) mm - 115
Backing Shoulder Diameter (db) inch - 4.53
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 143
Cup Frontface Backing Diameter (Da) inch - 5.63
Weight (kg) - 2.92
Weight (lbs) - 6.41
Outer Spacer - K161710
Inner Part Number - K37425
Outer Part Number - K37625

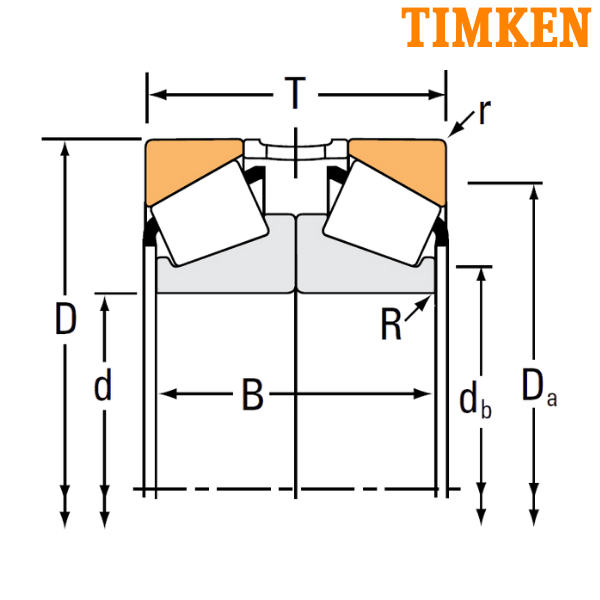

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
