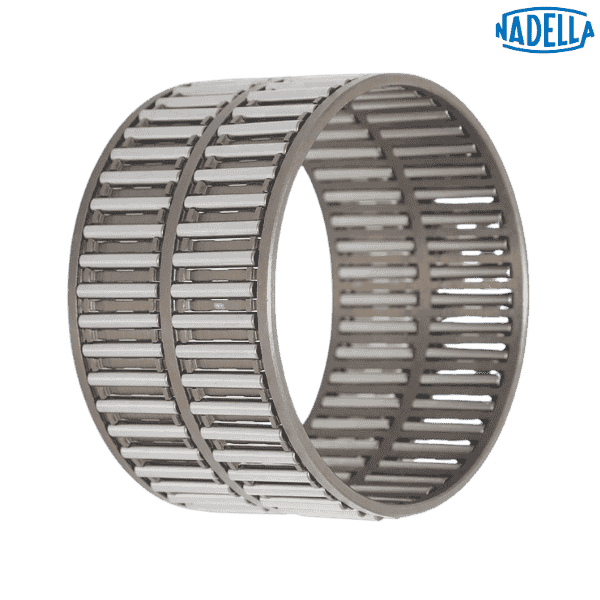

K35x45x49HZW NADELLA

Brand - NADELLA
Item Number - K35x45x49HZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row

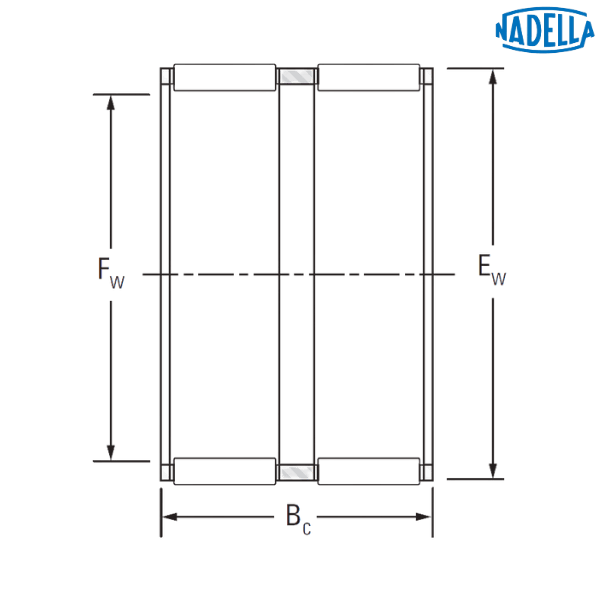

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Diameter of the Inner Raceway (Fw) - 35 mm
Dimension (Ew) - 45 mm
Dimension (Bc) - 49 mm
Dynamic Load Rating (C) - 71.8 mm
Static Load Rating (C0) - 115 mm
Speed Rating with Grease - 8400 rpm
Speed Rating with Oil - 13000 rpm
Maximum Mounting Dimension (S) - 35 mm
Minimum Mounting Dimension (S) - 34.989 mm
Maximum Mounting Dimension (H) - 45.025 mm
Minimum Mounting Dimension (H) - 45.009 mm
Weight - 0.143 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
ZW - Double Row

♦♦ Images are for representation purposes only
