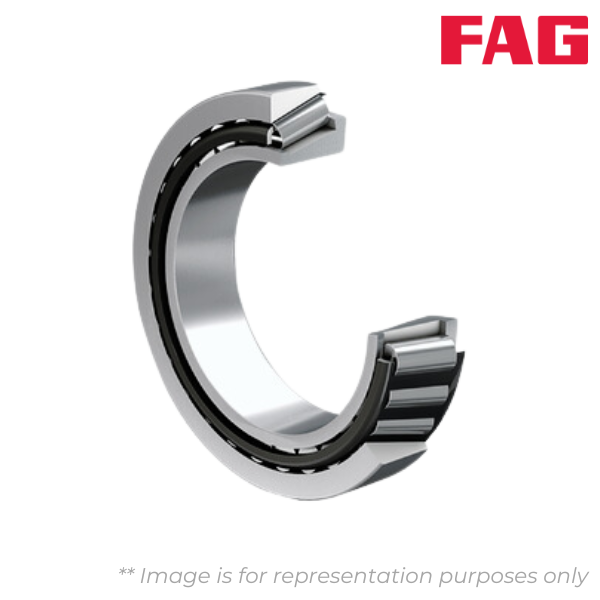

K355-X-352 FAG

Brand - FAG
Item Number - K355-X-352 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.694

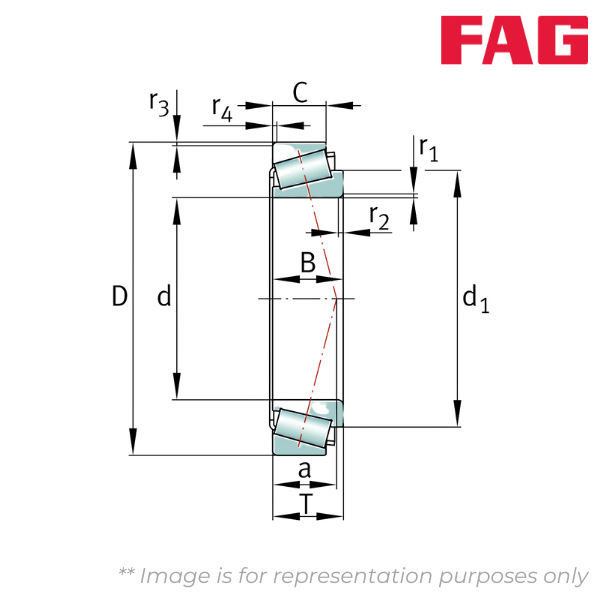

Inner Diameter (d) mm - 44.45
Inner Diameter (d) inch - 1.75
Outer Diameter (D) mm - 90.119
Outer Diameter (D) inch - 3.548
Inner Ring Width (B) mm - 21.692
Inner Ring Width (B) inch - 0.854
Outer Ring Width (C) mm - 21.808
Outer Ring Width (C) inch - 0.8586
Total Width (T) mm - 23
Total Width (T) inch - 0.9055
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.09
Distance Between The Apexes of The Pressure Cones (a) mm - 18
Distance Between The Apexes of The Pressure Cones (a) inch - 0.709
Guidance Rib Diameter of Inner Ring (d1) mm - 63.2
Guidance Rib Diameter of Inner Ring (d1) inch - 2.488
Maximum Diameter of Shaft Shoulder (da) mm - 50
Maximum Diameter of Shaft Shoulder (da) inch - 1.969
Minimum diameter of shaft shoulder (db) mm - 56
Minimum diameter of shaft shoulder (db) inch - 2.205
Minimum Diameter of Housing Shoulder (Da) mm - 78
Minimum Diameter of Housing Shoulder (Da) inch - 3.071
Minimum Diameter of Housing Shoulder (Db) mm - 82
Minimum Diameter of Housing Shoulder (Db) inch - 3.228
Minimum Axial Space (Ca) mm - 2
Minimum Axial Space (Ca) inch - 0.079
Minimum Axial Space (Cb) mm - 2.5
Minimum Axial Space (Cb) inch - 0.098
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 2.3
Maximum Fillet Radius of Housing (rb) inch - 0.09
Basic Dynamic Radial Load Rating (Cr) kN - 74
Basic Static Radial Load Rating (C0r) kN - 86
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.31
Dynamic Axial Load Factor (Y) - 1.96
Static Axial Load Factor (Y0) - 1.08
Fatigue Load Limit, Radial (Cur) kN - 10.2
Limiting Speed (nG) min–1 - 8800
