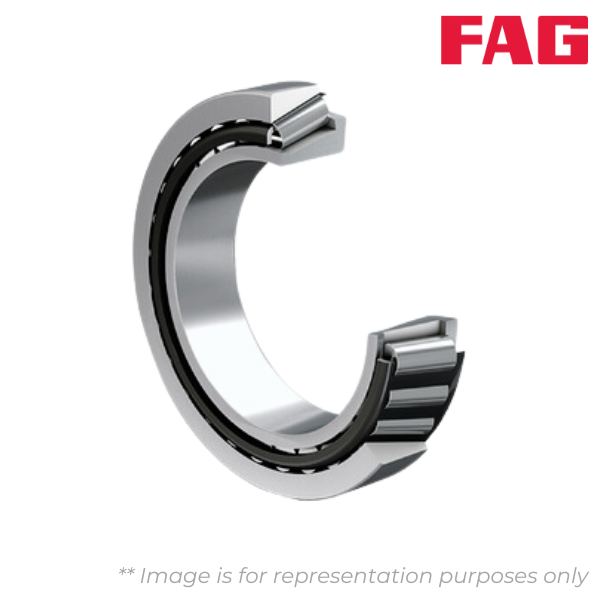

K33895-33822 FAG

Brand - FAG
Item Number - K33895-33822 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.806

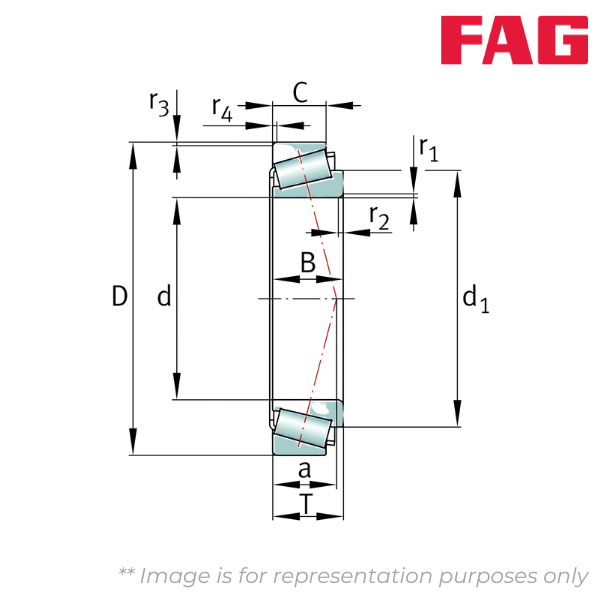

Inner Diameter (d) mm - 53.975
Inner Diameter (d) inch - 2.125
Outer Diameter (D) mm - 95.25
Outer Diameter (D) inch - 3.75
Inner Ring Width (B) mm - 28.575
Inner Ring Width (B) inch - 1.125
Outer Ring Width (C) mm - 22.225
Outer Ring Width (C) inch - 0.875
Total Width (T) mm - 27.783
Total Width (T) inch - 1.0938
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 1.5
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.06
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 0.8
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.03
Distance Between The Apexes of The Pressure Cones (a) mm - 20
Distance Between The Apexes of The Pressure Cones (a) inch - 0.787
Guidance Rib Diameter of Inner Ring (d1) mm - 73.1
Guidance Rib Diameter of Inner Ring (d1) inch - 2.878
Maximum Diameter of Shaft Shoulder (da) mm - 60
Maximum Diameter of Shaft Shoulder (da) inch - 2.362
Minimum diameter of shaft shoulder (db) mm - 63
Minimum diameter of shaft shoulder (db) inch - 2.48
Minimum Diameter of Housing Shoulder (Da) mm - 86
Minimum Diameter of Housing Shoulder (Da) inch - 3.386
Minimum Diameter of Housing Shoulder (Db) mm - 90
Minimum Diameter of Housing Shoulder (Db) inch - 3.543
Minimum Axial Space (Ca) mm - 5.5
Minimum Axial Space (Ca) inch - 0.217
Minimum Axial Space (Cb) mm - 6.5
Minimum Axial Space (Cb) inch - 0.256
Maximum Fillet Radius of Shaft (ra) mm - 1.5
Maximum Fillet Radius of Shaft (ra) inch - 0.06
Maximum Fillet Radius of Housing (rb) mm - 0.8
Maximum Fillet Radius of Housing (rb) inch - 0.03
Basic Dynamic Radial Load Rating (Cr) kN - 107
Basic Static Radial Load Rating (C0r) kN - 138
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.33
Dynamic Axial Load Factor (Y) - 1.82
Static Axial Load Factor (Y0) - 1
Fatigue Load Limit, Radial (Cur) kN - 17.2
Limiting Speed (nG) min–1 - 7500
